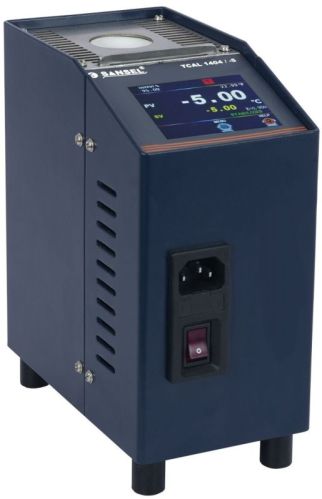

It is one of the smallest dry block with rich features and is highly competitive in price. SANSEL Model TCAL 1404/-5, (Dry Block Miniature Temperature Calibrator) sets a new benchmark in temperature calibration with advanced features that deliver unmatched precision, ease of use, and operational stability. Temperature range of the TCAL 1404 /-5 covers from -5 to 100 C. Our Drywell Calibrators are ideally suited for fast calibration in process industries to calibrate Thermocouple, RTD, Indicator with sensors & transmitters with sensors, this compact yet powerful calibrator is designed to meet the stringent demands of todays laboratories and field operations.
\Specifications
\Model: TCAL 1404/-5
\Display: 2.8" True TFT with Touch screen
\Temperature Range: -5 to 100C
\Radial uniformity: (Better than) �0.03C
\Resolution: 0.01 C
\Stability: �0.03 C
\Temperature readout: C
\Heating time:
\Amb to 100-->15min
\-5 to Amb -->3 min
\Cooling time:
\Amb to -5 -->15min,
\100 to 50-->4 min
\Stabilization time: 10 mins
\Well Dimension(dia. x height): 20 x 90 mm
\Well immersion depth: 90 mm (throw hole)
\Standard well holes in mm: 6.5 x 2nos
\Power supply: 80 to 264VAC / 113 to 370VDC / 47 to 63Hz
\Power consumption: 100 w
\Overall Dimension in mm: 170 x 95 x 183 mm
\Instrument Weight: 3.5 Kg
\
