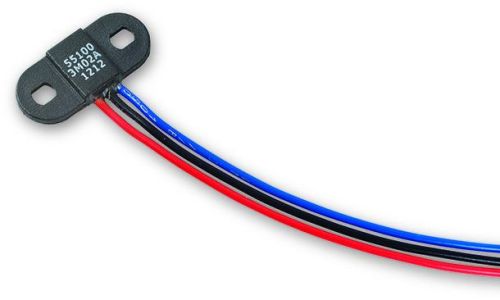

Miniature Flange Mounting Hall Effect Sensor

A miniature flange mount Hall effect sensor 25.5mm (1.004") x 11.00mm (0.433") and only 3.00mm (0.118") high with a choice of digital or programmable analog outputs. Available in 3-wire (voltage output) or 2-wire (current output) versions. Its case design enables screw or adhesive mounting. Capable of switching up to 28Vdc and 20mA. Available with a range of sensitivity, cable length and connector options. Ideally suited for position and limit sensing, rotation and flow measurement, commutation of brushless DC motors, angular sensing and magnetic encoding.
Features:
Magnetically operated position sensor
Digital or programmable analog types available
Open collector output
Medium, high or programmable sensitivities
Integral reverseover-voltage protection
Built-in temperature compensation
Benefits:
High switching speed up to 10kHz
Long life, up to 20 billion operations
Unaffected by harsh environments
Operates in static or dynamic magnetic field
Available with a selection of cable length and connector options
Applications:Position and limit sensing
RPM measurement
Flow metering
Commutation of brushless DC motors
Angle sensing
Magnetic encode
