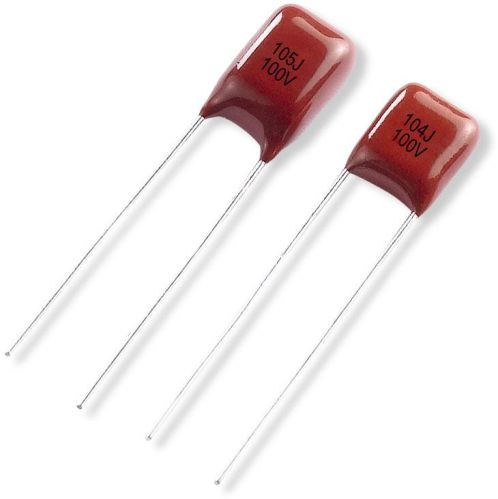

Miniature Metallized Polyester Film Capacitor

Miniature metallized polyester film capacitor
CL21X are non-inductively wound with special metallized polyester film as dielectric and electrode, with cooper-clad steel leads and epoxy resin coating. They are suitable for blocking, coupling, decoupling, by-passing, filtering and timing circuits, and are ideal for Telecommunicating, Data processing, Industrial instrument & Automatic Control System Equipments.
Specifications:
1.       Operating temperature:-40℃ -- +85℃
2.       Capacitance range:0.0022uF -- 1.0uF
3.       Capacitance tolerance:±5%(J), ±10%(K)
4.       Rated voltage:100VDC
5.       Dissipation factr: 1.0% max. at 1KHz, 25℃
6.       Insulation resistance:10,000 MOhm min. for≦0.33UF 3,300 MOhm*uF/C min. for C>0.33uF
7.      Dielectric strength: 150% of rated voltage for 5 sec.
