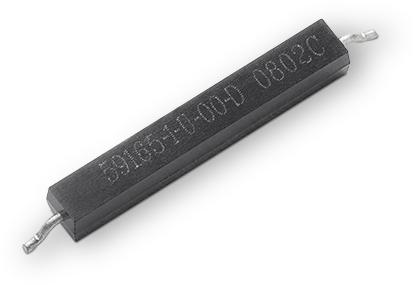

Miniature Overmolded Reed Switch

Littelfuse Reed Switches 59165 datasheet
Order Sample
A miniature overmolded reed sensor 16.00mm x 2.41mm x 2.41mm (0.630" x 0.095" x 0.095") with straight, staple-form, or gull-wing leads. Provided with normally open contacts. Capable of switching up to 200Vdc at 10W. Its package contains molded stand-offs to allow board washing. Available with a range of sensitivity options, including customer-defined sensitivity. Well suited for position and limit sensing, security, and doorwindow alarm systems. Functions best with the 57045 actuator.
Note: The 57045 actuator is sold separately.
Features:
Two-part, magnetically-operated proximity sensor
Gull-wing, straight, or staple-form lead options
Molded stand-off to allow board washing
Customer-defined sensitivity
Suitable for reflow soldering
Benefits:
Well suited for usage in high-moisture and contaminated environments
Reed contacts last for millions of operating cycles under micro-controller voltage and current logic-level loads
Suitable for pick-and-place assembly
Applications:
Position and limit switching
Security
Door switch
