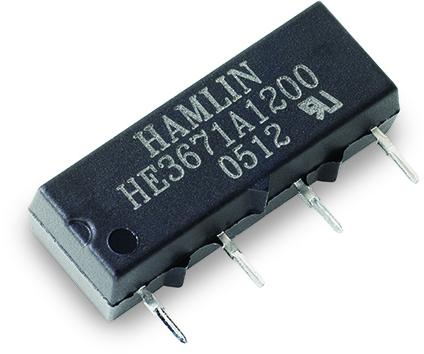

Miniature Single Reed Relay

Miniature reed relay in a single-in-line (SIL) package with a choice of normally open or data switching contacts capable of switching up to 200Vdc at 10W. Available with 5V, 12V and 24V coils and has external magnetic shield and diode-suppressed coil options. Ideally suited for telecom, instrumentation, process control and industrial applications. Data switching contacts are especially recommended for automatic test equipment (ATE) applications.
Features:
Miniature single-in-line (SIL) package
Optional coil suppression diode is available to protect coil drive circuits
Available with normally open contacts
Available in specialist ATE version
External magnetic shield option available
Benefits:
Sub-miniature size and single-in-line configuration allows very high packing densities, minimizing space and cost
Designed specifically to meet the requirements of the ATE environment
Lower coil power consumption than electromechanical devices
Hermetically sealed switching contacts are immune to their environment
Transfer molded package gives maximum component protection
Applications:
