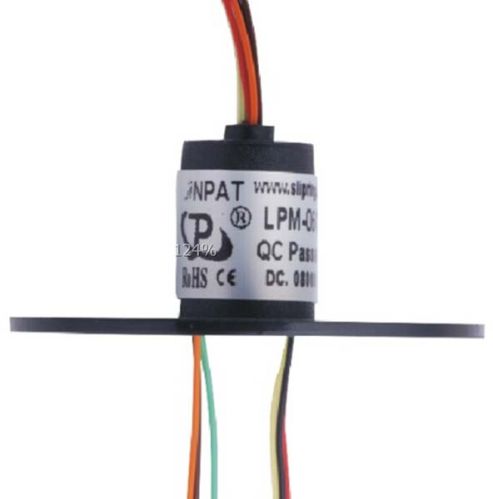

Miniature Slip Ring (LPM-06C)

In order to meet the ever-evolving demands of our clients, we are engaged in offering Miniature Slip Ring (LPM-06C) to the clients. We carry out our operations from China. These slip rings are highly praised for their excellent performance, hassle-free operations, seamless finish, corrosion resistance, and long operational life. We offer it in various circuit configurations, to cater to the varied industrial requirements. We are renowned for making on-time deliveries of our shipments.

Description :

• This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
• It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. Its the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.
• The LPM-06C miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
• The LPM-06C allows tremendous flexibility in dealing with system size restrictions. It is available in 4- 6 circuit configurations.

Features :

• 6 circuits models
• 2 amps per circuit, 240 VAC/ DC
• Precision assembly to provide exceptional rotational life
• Speed up to 300 rpm continuous
• Gold-Gold contacts
• Flexible, color-coded, silver-plated, lead wires
• Superior handling of low level control signals
• Metal housing optional

Advantage :

• Low torque minimizes system torque budget
• Tight packaging to fit in the most demanding space.
• Smooth running
• Low electrical noise
• Quick shipment per your urgent requirement
• 360^o continuous rotation
• Addition of special components

Main Application :

• Electrical test equipment
• Manufacturing and process control equipment
• Indexing tables.
• CCTV pan / tilt camera mounts
• Robotics, rotary sensors, urgent illumination equipment
• Exhibit / display equipment.
• Aviation ,military ,instrument, medical equipment
• Mini-type wire-rolling machine
• Closed-circuit control
