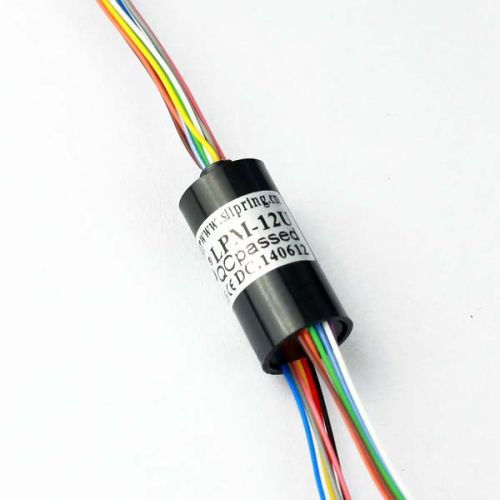

Miniature Slip Ring (LPM-12U)

We have gained an immense recognition in the market, by offering a supreme class Miniature Slip Ring (LPM-12U). Our business is based in China. Fabricated by using the quality-approved materials and modern technology, our offered product is highly durable and perfectly finished. We are endowed with an ample production capacity, which enables us to meet the bulk requirements of our clients on a timely basis. We offer it at a reasonable rate.

Description :

• This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
• It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. Its the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.
• The LPM-12U miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
• The LPM-12U allows tremendous flexibility in dealing with system size restrictions. It is available in 4, 6 and 12 circuit configurations.

Features :

• 12 circuits models
• 2 amps per circuit, 240VAC/DC
• Precision assembly to provide exceptional rotational life
• Speed up to 300 rpm continuous
• Gold-Gold contacts
• Flexible, color-coded, silver-plated, lead wires
• Superior handling of low level control signals
• Metal housing optional

Advantage :

• Low torque minimizes system torque budget
• Compact design to fit in the most demanding space.
• Smooth running
• Low electrical noise
• Quick shipment per your urgent requirement
• 360° continuous rotation
• Addition of special components

Main Application :

• Electrical test equipment
• Manufacturing and process control equipment
• Indexing tables.
• CCTV pan / tilt camera mounts
• Robotics, rotary sensors, urgent illumination equipment
• Exhibit / display equipment.
• Aviation, military, instrument, medical equipment
• Mini-type wire-rolling machine
• Closed-circuit control
