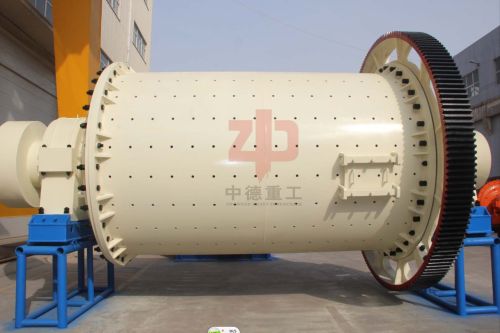

Mining Ball Mill

We are offering mining ball mill
specification:
1.iso9001:2008
2.professional manufacture with 50years
3.durable liner,whole life service,discharging evenly
4.customized
shell rotation speed(rmin) ball load(t) feeding size(mm) discharging size(mm) power(kw) total weight(t) tianjin, qingdao ,shanghai 20-30 days after receiving payment export standard container 20gp or 40gp, 40hq, fr container, in bulk, the spare parts in wooden case

what are these machines and how do they work?
a ball mill grinds material by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter, the slower the rotation. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill.
The point where the mill becomes a centrifuge is called the "critical speed", and ball mills usually operate at 65% to 75% of the critical speed.
Ball mills are generally used to grind material 14 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recalculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills.
This formula calculates the critical speed of any ball mill. Most ball mills operate most efficiently between 65% and 75% of their critical speed.

application:
ball mill is the key equipment for grinding after the crush process, and it is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
It also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

types:
mill could be sorted as following:
as per the grinding media: ball mill, rod mill and ag mill (without grinding media).
As per material discharging mode: wet grid mill, dry grid mill & overflow mill.
As per driving mode: side & central driving. The former is more popular now.
As per driving configuration:
a. Asynchronous motor driving: asynchronous motor + reducer + pinion +girth gear
b. Synchronous motor driving: synchronous motor+ air clutch+ pinion +girth gear
c. Asynchronous motor + reducer + diaphragm coupling

structure of ball mill:
the machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).
the quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance.

working principle:
the ball mill is horizontal cylindrical rotation device, driven by brim gearwheel.
there are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain heigh specification:
