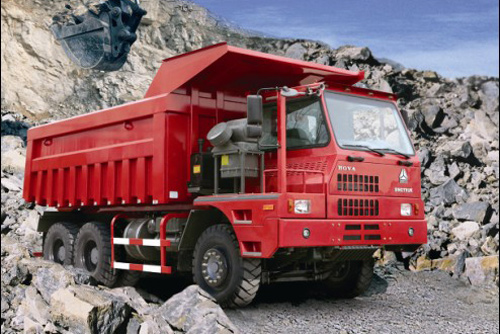

Mining Dumper

We are offering mining dumper. The description of mining dump truck:
mining dump truck is the heavy duty truck that is widely used in china and foreign countries. Our mining dump truck has been trusted and praised by our global customers for its advanced design, good performance, reliable quality etc.
Basic configurations and technical parameters of hova 60 mining dumper (6×4, eu ⅱ)
model of representative vehicle
zz5607vdnb34400
zz5607vdnb36400
zz5607vdnb38400
cab
model
d08
type
skin framework, big plane, single-side reinforced type, only for mining vehicle.
engine
model
wd615.69
wd615.69
wd615.69
rated power kwrpm
2472200
2472200
2472200
max. Torque nmrpm
13501300-1600
13501300-1600
13501300-1600
discharge l
9.726
type
in-line, six cylinders, two valves, rear supercharger, supercharging intercooling
clutch
standard configuration 430a diaphragm spring clutch, hydraulic control, air booster.
transmission
hw19710, a primary gearbox + a secondary gearbox; primary gearbox: double countershafts; secondary gearbox: planetary reduction and hw50 power takeoff.
front axle
reinforced integrated cast steel front axle.
drive axle
reinforced integrated cast steel rear axle only for mining vehicle, rated load 25t, speed ratio: 10.24, optional 12.814.93.
suspension
frontrear suspensions are plate springs.
steering system
zf8098 steering gear, zf steering pump and fuel tank, system pressure 18mpa
braking system
service brake: dual-circuit air brake; parking brake: energy storage spring air-break brake; auxiliary brake: engine exhaust brake; optional configuration abs and automatic slack adjuster.
electric system
single wire system, minus earth; voltage: 24v; dynamo:1540w; starter: 7.5kw; storage battery: 2×12v165ah.
