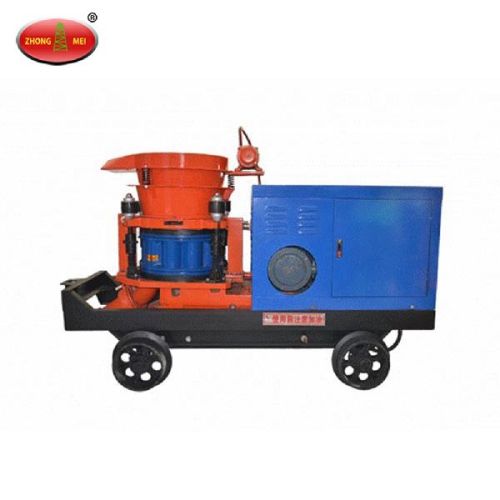

Mining Explosion-proof Wet Shotcrete Machine

Introduction of HSP-5B Mining Explosion-proof Wet Shotcrete Machine HSP-5B Mining Explosion-proof Wet Shotcrete Machine is widely used or spraying half wet or wet concrete In coal mine, tunnels, culverts, subway, underground engineering and other narrow space. It has the following advantages: 1.HSP-5B Mining Explosion-proof Wet Shotcrete Machine was designed with Anti-explosion Motor 2.special vibration hopper, reasonable four-point fastening mechanism, convenient accelerator adding system. 3.simple design, advanced technology, compact structure, convenient operation, maintenance and cleaning. 4.long conveying distance, fewer dusts, reliable performance. Parameters of HSP-5B Mining Explosion-proof Wet Shotcrete Machine item HSP-5B Output 5 m³H Max. Convey dist Horizontal:30m Vertical: 20m Concrete proportion 1:4-5CA Water cement ratio ≤0.4 Hose inner size Φ51m Max. Aggregate size 15mm Operating air pressure 0.3-0.6MPa Air consumption 10-15m³min Rotor  diameter 438mm Spring rate level ≤10% The accelerating liquid adding amount 0.3-0.7% main Electric motor power Y132m-6-5.5KW Accelerating metering pump pneumatic Overall dimension(mm) 1280x700x1280  Whole weight 700kg Rail wheel gauge  600mm(762or 900mm) Pictures of HSP-5B Mining Explosion-proof Wet Shotcrete Machine.
