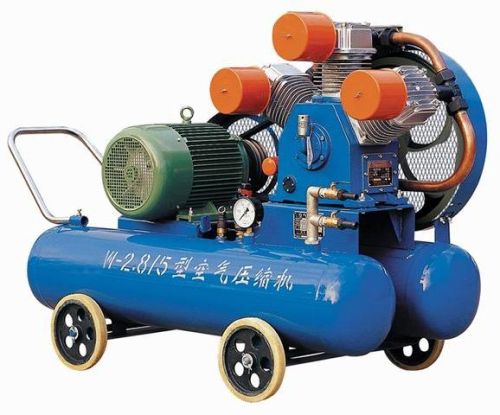

Mining Piston Air Compressor, Engineering Piston Air Compressor

We are offering mining piston air compressor, engineering piston air compressor. Discharge pressure: 0.5 - 0.7mpa displacement :1.35-13m3 / min motor power range :11-75 kw
features:
1-valve block, spring block are made of sweden special steel, high efficiency and reliability
2-special designed piston ring ensured low lube consumption
3-cylinder is made of boroncast-iron, durable and suitable for dusty field environment
4-the technology of die-casting is used in cylinder lid, nice shape and good heat dispersion
5-simple structure, light weight, flexible and moveable
6-easy to operation and maintenance
mining and engineering piston air compressor
model
power(kw)
capacitym3/min)
working presure(mpa)
dimension
w-1.35/5-d
11
1.35
0.5
1390×640×980
w-1.35/5
s1100
1.35
0.5
1390×640×980
w-1.8/5-j-d
11
1.8
0.5
1700×710×1000
w-1.8/5-j
s1100
1.8
0.5
1700×710×1000
w-1.8/5-d
11
1.8
0.5
1700×710×1000
w-1.8/5
s1100
1.8
0.5
1700×710×1000
w-2/5-d
11
2
0.5
1700×810×1050
w-2/5
s1100
2
0.5
1700×810×1050
w-2.6/5-d
15
2.6
0.5
1780×870×1235
w-2.6/5
s1110
2.6
0.5
1780×870×1235
w-2.8/5-d
15
2.8
0.5
1780×870×1235
w-2.8/5
s1110
2.8
0.5
1780×870×1235
w-2.8/5-g-d
15
2.8
0.5
1780×870×1235
w-2.8/5-g
s1115
2.8
0.5
1780×870×1235
w-2.8/5-g-dz
15
2.8
0.5
1780×870×1235
w-3/5-d
18.5
3
0.5
1800×900×1300
w-3/5
s1115
3
0.5
1800×900×1300
2v-3.5/5-d
18.5
3.5
0.5
1800×950×1300
2v-3.5/5
s1125
3.5
0.5
1800×950×1300
2v-4/5-d
18.5
4
0.5
1800×950×1300
2v-4/5
s1125
4
0.5
1800×950×1300
w-1.8/7-d
11
1.8
0.7
1100×820×1100
w-1.8/7
s1100
1.8
0.7
1100×820×1100
w-2.6/7-d
15
2.6
0.7
1800×870×1235
w-2.6/7
s1115
2.6
0.7
1800×870×1235
w-3.2/7-d
18.5
3.2
0.7
1920×960×1350
w-3.2/7
s1125
0.7
0.7
1920×960×1350
w-2.5/3-d
11
2.5
0.3
1780×870×1235
w-2.5/3
s1110
2.5
0.3
1780×870×1235
vf-3/7
18.5
3
0.7
1720×1100×1110
vf-6/7
37
6
0.7
2100×1100×1110
vfy-6/7
37
6
0.7
2830×1500×1890
vf-7/7
40
7
0.7
2100×1100×1110
cvf7/7
yc4108
7
0.7
2760×1200×1460
cvf7/7
qc4110
7
0.7
2760×1200×1460
vfy-7/7
40
7
0.7
2830×1500×1890
cvfy-7/7
yc4108
7
0.7
2830×1300×1890
cvfy-7/7
qc4110
7
0.7
2830×1300×1890
vf-9/7
55
9
0.7
2460×1200×1220
vfy-9/7
55
9
0.7
2830×1500×1900
vf-10/7
65
10
0.7
2460×1200×1220
vfy-10/7
65
10
0.7
2830×1500×1900
cvf-10/7
yc4108zg
10
0.7
3200×1350×1650
cvf-10/7
qc4112
10
0.7
3200×1350×1650
cvfy-10/7
yc4108zg
10
0.7
3200×1550×2230
cvfy-10/7
qc4112
10
0.7
3200×1550×2230
vf-13/7
75
13
0.7
2460×1200×1220
vfy-13/7
75
13
0.7
2830×1500×1900
cvf-13/7
yc6108zg
13
0.7
3300×1350×1470
cvf-13/7
cummins 6bt5.9-c118
13
0.7
3300×1350×1470
cvf-13/7
qc6112
13
0.7
3350×1350×2100
cvfy-13/7
yc6108zg
13
0.7
3500×1600×2640
cvfy-13/7
cummins 6bt5.9-c118
13
0.7
3500×1600×2340
cvfy-13/7
qc6112
13
0.7
3570×1600×2640
2v-6/7
37
6
0.7
1750×1100×1200
2v-7/7
40
7
0.7
1750×1100×1200
