Ball Mill

Listing ID #4354126

Get Latest Price

TypeMining powder production
Input Size20-25mm
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory....

View More Details

Send Enquiry

Product Details

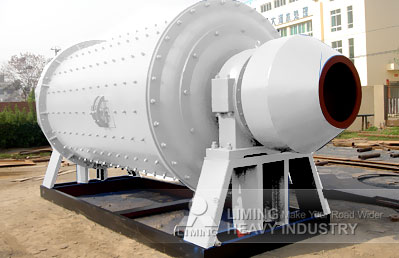

The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
Features
1. High crushing ratio
2. Still final size
3. Simple structure
4. Reliable working conditions
5. Easy maintenance
6. Low cost work
Working Principle
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Processed Materials :
Iron ore

Applications :
Cement, coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.

Model	Rev. of barrel(rpm)	Max ball load(t)	Maximum feed size(mm)	Output fineness(mm)	Capacity(tph)	Power (kW)	Weight (t)
Ф900×1800	42	1.4	≤20	0.075-0.89	0.65-2	18.5	3.6
Ф900×3000	41	2.5	≤20	0.075-0.89	1.1-3.5	22	4.5
Ф1200×2400	36	3.5	≤25	0.075-0.6	1.5-4.8	30	11.5
Ф1200×3000	32	5	≤25	0.075-0.6	1.6-5	45	12.8
Ф1200×4500	32	5.5	≤25	0.074-0.4	1.6-5.8	55	13.8
Ф1500×3000	31	6.8	≤25	0.074-0.4	2-7	75	17
Ф1500×4500	27	10.5	≤25	0.074-0.4	3.5--8	110	21
Ф1500×5700	27	15	≤25	0.074-0.4	3.5-10	132	24.7
Ф1830×3000	26	13	≤25	0.074-0.4	4-12	160	28
Ф1830×6400	26	23	≤25	0.074-0.4	6.5-15	210	34
Ф1830×7000	26	25	≤25	0.074-0.4	6.5-22	210	36
Ф2200×5500	21	30	≤25	0.074-0.4	10-20	245	48.5
Ф2200×7500	21	33	≤25	0.074-0.4	16-50	380	56
