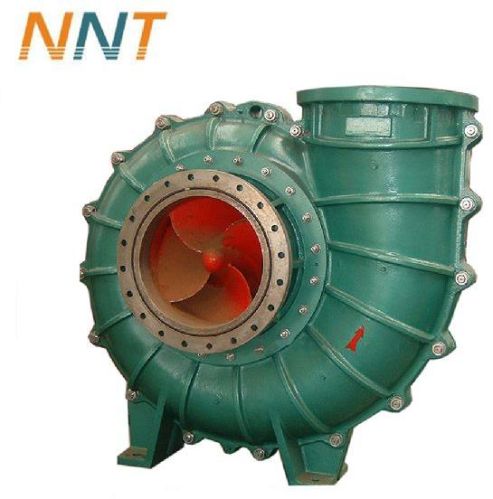

Mining Slurry Pump

Mining slurry Pump
Product Description
Size range (outlet):----- 1'' to 18'' (25 mm to 450 mm)
Capacity:-------------- up to 22,000 gpm ( 5,000 m3/hr )
Head: -----------------up to 240 ft (73 m )
Pressure: --------------up to 300 psi (2,020 kPa)
Features:
1). Cantilever, horizontal centrifugal slurry pump
2). Better wear-resistance and corrosive resistance
3). Frame plate for type pumps have replaceable wear-resistant metal( high chrome alloy ) liners
or rubber liners. Impeller material : high chrome alloy or Natural rubber .
Placer Gold Ore Mining slurry Pump
4). In allowable pressure range, it can be used in series in stages, and allowable
maximum working pressure is 3.6Mpa.
5). Expeller seal, mechanical seal and packing seal are available .
Placer Gold Ore Mining slurry Pump
6). The discharge branch can be positioned at interval of 45 degrees by request and oriented
to any eight positions to suit installations and applications.
Placer Gold Ore Mining slurry Pump
7). To adapt to convey heavy abrasion, high concentration dreg , NH slurry pump's body is
used double-deck construction , in other words, being made of inside lining and outside shell.
Models and demensions:
For example: 6/4E-AH
6:------------Suction diameter (inch)
4:------------Discharge diameter (inch)
E:-----------Base type
AH:---------Heavy abrasive slurry pump
