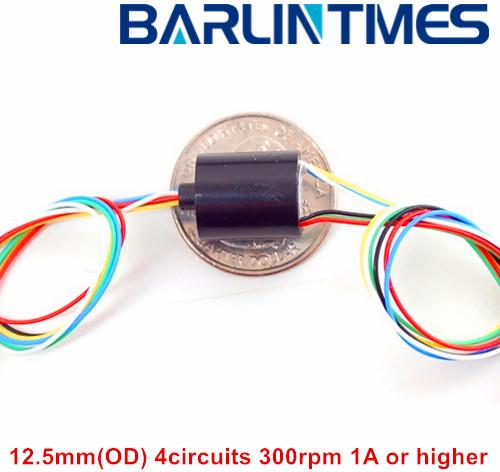

Miniture Capsule Slip Ring With 12mm Diameter

Capsule slip ring enjoys the main feature of compact design which could provide signalpower combination circuits ( ethernet, usb, rs, canbus, video, sensor, power, control,etc. ) the standard diameter of this series can be from 8.5mm-35mm, also it adopts advanced standard military degree surface processing technology to meet the demand of every customer. Gold to gold contact materials could make sure low electrical noise and longer work life time, specially suit for small and medium size equipment to transmit weak signal.
features:
1.gold to gold contact materials guarantee long life time
2.low torque, low electrical noise and smooth rotation
3.small compact construction
4. Compatible with data bus protocols
5. Continuous transmission of signal andor data under 360 degree unrestrained rotation
option:
1.circuits
2.current & voltage
3.work speed
4.housing materials and color
5.protection degree
6.lead wire exit direction
7.connector type
8.signal and power transmission single or together
application:
1.cctv
2.rotary table, exhibitiondisplay equipment
3.robotics
4.medical equipment
5.wind turbine generator
6.industry process equipment
12mm
thr012-04am
specification
circuits 4 circuits
work speed 0-300rpm
work humidity 60%rh or higher
voltage rating 240vacdc
current rating 1a or higher
contact materials gold to gold
lead wire length standard 250mm
housing materials engineering plastic
protection ip54 or higher
