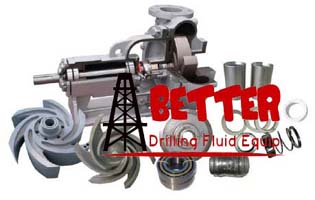

Contact Supplierwe are offering mission 2500 submersible pump parts. a series of fluid end parts could be provided, interchangeable with mission magnum i, and 2500 supreme, halco 2500. the equivalent or same materials are selected to guarantee the unified quality.
part no. # processing# description
10399-46-1 648403012 gasket,casing
3932-61 648402014 nut,casing
3862-76 648401115 stud,casing
8505-04-01 86485503 plug,casing drain
8505-04-01 646400507 plug,flush line
19110-72 64845082 seal,impeller
7300239 washer impeller
7415648 bolt, impeller lock
22223-01-30 641116157 stuffing box,mech.seal
20614-01-30 643365042 stuffing box,packed
3861-117 648401016 bolt,stuffing box
19368-01 601499403 grease fitting
20622a 641103338 gland assy,packing
22451-1 648414308 seal,mechanical
25014-04m-b 661007005 packing, shaft
b3701a 601102494 bolt assy,gland
20612-02-33 646490557 shaft
20943-21 641102182 sleeve,shaft,m.s.
20613-21g-7a 641102181 sleeve,shaft,pack
4372-5-21 601212392 key,shaft
19203-01-30a 641101753 casing, 3x2x13
19205-01-30a 641101902 casing, 4x3x13
19222-01-30a 641102058 casing, 5x4x14
19122-01-30a 641101456 casing, 6x5x11
19123-01-30a 641101605 casing, 6x5x14
19763-01-30a 641102157 casing, 8x6x11
19117-01-30a 641101308 casing, 8x6x14
20937-01-30a 641102322 casing, 10x8x14
19204-xx-30 impeller, 3x2x13
19206-xx-30 impeller, 4x3x13
19224-xx-30 impeller, 5x4x14
19121-xx-30 impeller, 6x5x11
19121-xx-30 impeller, 6x5x14
19121-xx-30 impeller, 8x6x11
19116-a0-30 impeller, 8x6x14
21867-xx-30 impeller, 10x8x14
