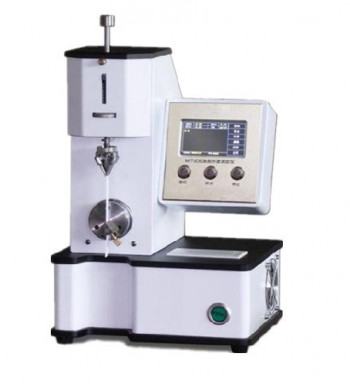

Mit Folding Tester, Brand Name : Cell Instruments

Mit folding tester tests folding endurance of paper, paperboard and other sheet material with thickness less than 1mm.
Mit folding tester features
1. lcd display, pvc menu type manual
2. microcomputer control, auto measuring, groups test data statistics and data storage
3. folding chuck automatic return
4. maximum, minimum, average value and variable coefficient auto calculating
5. different folding chuck and weights available
6. micro printer
mit folding tester technical data
test range: 0～99999 times
folding angle: 135°±2°
folding speed: 175±10 timesmin
folding radius: 0.38±0.02mm
tension adjustment range: 4.9n、9.8n、14.72n
folding head clamping thickness: 0.25mm，0.50mm，0.75mm，1.00mm
folding head width: 19±1mm
dimension: 300mm(l)*350mm(w)*450mm(h)
weight: 22kg
mit folding tester standards
iso 5626, gbt 457-2008, qbt 1049
