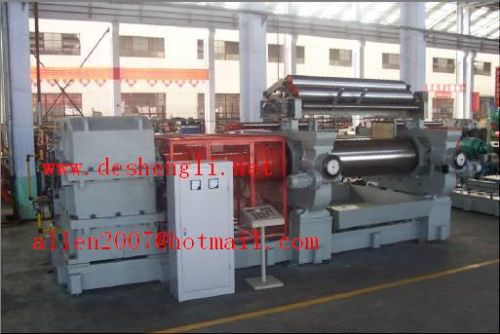

Mixing Mill (XK-660, XK710)

Mixing Mill (XK-660, XK710)
Be used for the mastication, mixing, warming up and sheeting of rubber.
Specification XK-660 XK-710
Roll diameter: φ660mm (26″) φ710mm (28″)
Working length of the rolls: 2130mm (84″) 2200mm (87″)
Structure of front roll: bored roll or drilled roll or fluted roll bored roll or drilled roll
Linear velocity of the front roll: 28.6/32.53m/min 3~30m/min
Friction ratio of rolls: 1:1.09 / 1:1.24 1:1.083
Material of rolls: chilled cast iron chilled cast iron
Hardness of rolls: HS68~75 HS68~75
Max. nip of rolls: 15mm 17mm
Bush: bearing type bearing type
Feeding capacity per batch: 165Kg 210Kg
Motor power: 180/245KW 280KW
Voltage1: 420V, 50HZ, 3 phrase; 380~440V, 50HZ, 3 phrase;
Voltage2: 220V, 50HZ, single phrase with transformer 220V, 50HZ, single phrase with transformer
