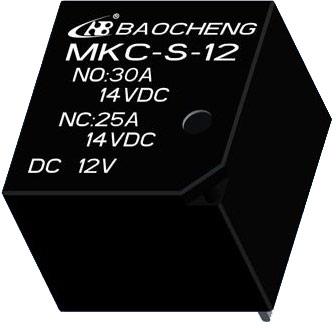

relay type:Â mk relay
baocheng export excellent power relay, telecom relays and automotive relays.
Â
· subminiature automotive relay
· only 4g for single relay
· extended temp. Range up to 105℃
· no,no&nc contact form available
· environmental friendly productÂ
· outline dimension: 12 x 12.8 x 9.8mm
automotive relays, automotive relays for sale, factory
contact ratings | |
contact form: | 1a, 1c |
contact material: | agsno2 |
contact load capacity: | 1a: 30a/14vdc 1c: 30a/14vdc; 25a/14vdc |
max. switching current: | 30a |
max. switching power: |  |
mechanical endurance: | 1*107ops |
electrical endurance: | 1*105ops |
Â
technical ratings | |
insulation resistance: | 100mω |
dielectric strength(between coil&contact): | 500vac |
operate time (max.): | 10ms |
release time (max.): | 10ms |
ambient temperature: | -40℃ ~ 105℃ |
terminal type: | tht |
Â
Â
coil ratings | |
nominal voltage | (5-24)vdc |
nominal coil power | 0.57w,0.8w |
