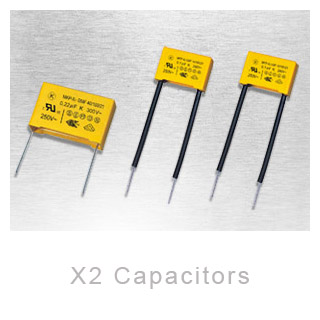

MKP X2 Class Metallized Polypropylene Film Interference Suppression Capacitor

Features Metallized Polypropylene film, non-inductively wound construction.
Plastic case and epoxy resin seal.
Withstanding overvoltage stressing.
Excellent active and passive flame resistant abilities.
Applications widely used in antenna coupling, across-the-line, interference suppression circuit, etc.
Specifications REFERENCE STANDARD: IEC60384-14
OPERATING TEMPERATURE: -40� - +100�
CAPACITANCE RANGE: 0.0022uF - 1.0uF
CAPACITANCE TOLERANCE: ±10%(K), ±20%(M)
RATED VOLTAGE: 250VAC, 275VAC
DISSIPATION FACTOR: �0.1% 1KHz, 20�
�0.35% 10KHz, 20�
DIELECTRIC STRENGTH: Between Terminals: 1,200VDC for 60 sec. or 2200VDC for 1 sec.
Between Terminals to case: 2050VAC for 60 sec.
INSULATION RESISTANCE: 15,000 MOhm min. for C�0.33uF
5,000 MOhm*uFC min. for C>0.33uF (20�, 1min)
Notes Customization for special specification and requirement is available.
