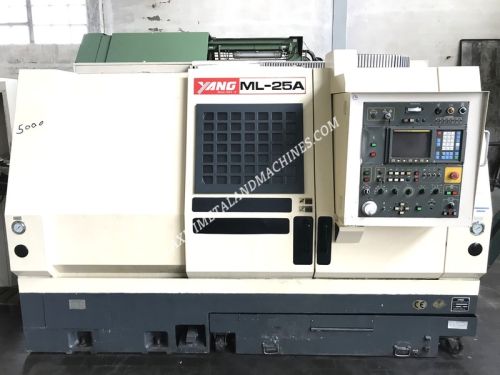

Contact SupplierCNC LATHE
Make : YANG.
Model : ML 25A.
CONTROL : FANUC series 0-T.
Swing over bed dia : 550 mm.
Chuck diameter : 280 x 520 mm.
Swing over saddle : 350 mm.
Max. distance between center : 600 mm. Max. longitudinal travel : 520 mm.
Z axis feed motor : FANUC AC servo motor 10S 1.8 Kw. Rapid feed of Z axis : 12 mmin.
Max. cross travel : 216 mm.
X axis feed motor : FANUC AC servo motor 5S. 0.9 Kw. Rapid feed of X axis : 20 mmin.
Front bearings bore dia : 110 mm.
Thru hole dia : 77 mm.
Taper of spindle bore : MT NO. 7.
Spindle drive motor : FANUC AC spindle motor 8S 7.5 Kw 11 Kw. Spindel speed : 45 - 4500 rpm.
Diameter of tailstock spindle : 85 mm.
Vertical octagonal turret.
Height from bed to spindle center line : 295 mm. General dimension : 4000 x 2000 x 2220 mm. Total weight of the machine : 5000 Kg.
