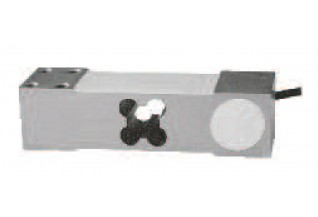

We are a leading name reckoned for the wide product range that is manufactured using only certified raw material. This helps us in keeping the quality standards of our products high. We are reckoned as the noted Supplier of (MLA22) Single Point Load Cell as we are capable of meeting the exact requirements of the buyers.
Features : High Measuring Accuracy Load Measurement Range of 50 300kg Compact and Rugged Model Anodized Aluminium Alloy Material Silicon Rubber Sealing
Applications : Electronic scales Bin and hopper weighing systems Mechanical scale conversion Hanging Scales OEM scale construction Level and inventory measurement
| Standard Measurement Range | 50kg, 100kg, 150kg, 200kg, 250kg, 300kg, Any other non-standard range |
|---|---|
| Output Signal | 2mV/V |
| Accuracy (combined LRH) | 0.05% FS |
| Creep | ±0.02% FS / 30min |
| Overload Rating | 150% FS |
| Zero unbalance | ±1% FS |
| Protection Level | IP65 |
| Compensated Temp. Range | -10 to 40oC |
| Operating Temp. Range | -20 to +65oC |
| Temp. Coefficient of Zero | 20ppm FS /oC |
| Temp. Coefficient of Span | 20ppm FS/oC |
| Input Resistance | 400±10Ω |
| Output Resistance | 350±10Ω |
| Insulation resistance | > 5000MΩ @ 50VDC |
| Electric Connection | 0.3m cable |
