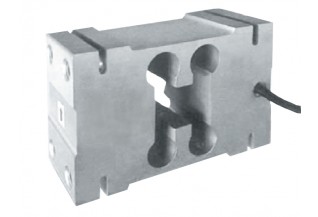

Features : High Measuring Accuracy Load Measurement Range of 50 2000kg Compact and Rugged Model Anodized Aluminium Alloy Material Silicon Rubber Sealing
Applications : Electronic scales Bin and hopper weighing systems Mechanical scale conversion Hanging Scales OEM scale construction Level and inventory measurement
| Standard Measurement Range | 50kg, 100kg, 150kg, 200kg, 250kg, 500kg, 750kg, 1t, 2t, Any other non-standard range |
|---|---|
| Output Signal | 2mV/V |
| Accuracy (combined LRH) | 0.02% FS |
| Creep | ±0.05% FS / 30min |
| Overload Rating | 150% FS |
| Zero unbalance | ±1% FS |
| Protection Level | IP65 |
| Compensated Temp. Range | -10 to 40oC |
| Operating Temp. Range | -20 to +60oC |
| Temp. Coefficient of Zero | 0.02% FS /10oC |
| Temp. Coefficient of Span | 0.02% FS /10oC |
| Input Resistance | 405±5Ω |
| Output Resistance | 350±5Ω |
| Insulation resistance | ≥5000MΩ @ 50VDC |
| Electric Connection | 3m cable |
