We are known for delivering the orders within the specified time frame owing to our modern transit facilities. Our prime interest is to deliver a flawless range of products to the buyers. And in this concern, we make all arrangements in order to store the entire lot under safe environment.

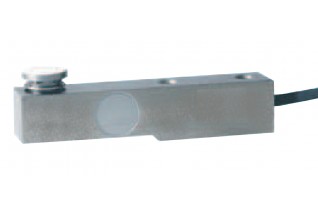

Features : High Measuring Accuracy Load Measurement Range of 0.5 to 25t Compact and Rugged Model Nickel coated Steel Alloy Material Silicon Rubber Sealing
Application : Hanging Scales Bin and hopper weighing systems Mechanical scale conversion OEM scale construction Level and inventory measurement Electronic scales
| Standard Measurement Range | 500kg, 1t, 2t, 2.5t, 3t, 5t, 10t, 15t, 20t, 25t, Any other non-standard range |
|---|---|
| Output Signal | 2mV/V |
| Accuracy (combined LRH) | 0.05% FS |
| Creep | ±0.05% FS / 30min |
| Overload Rating | 120% FS |
| Zero unbalance | ±1.5% FS |
| Protection Level | IP67 |
| Compensated Temp. Range | -10 to 45oC |
| Operating Temp. Range | -35 to +65oC |
| Temp. Coefficient of Zero | 0.011% FS /10oC |
| Temp. Coefficient of Span | 0.019% FS /10oC |
| Input Resistance | 350±3.5Ω |
| Output Resistance | 351±2Ω |
| Insulation resistance | ≥5000MΩ @ 50VDC |
| Electric Connection | 3m cable |
