Contact SupplierWe make sure that our inputs are in conformation with the international quality standards and free from all sorts of impurities in order to offer quality-approved products to the buyers. Our team of quality experts strictly checks the entire range against varied parameters to make sure that they adhere to global quality standards.

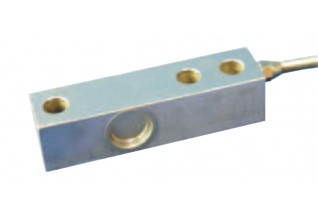

Features : High Measuring Accuracy Load Measurement Range of 0.25 to 10t Compact and Rugged Model Nickel Coated Steel Alloy Material Silicon Rubber Sealing
Application : Electronic scales Bin and hopper weighing systems Mechanical scale conversion Hanging Scales OEM scale construction Level and inventory measurement
| Standard Measurement Range | 250kg, 500kg, 1t, 2t, 2.5t, 3t, 5t, 10t, Any other non-standard range |
|---|---|
| Output Signal | 3mv/V |
| Accuracy (combined LRH) | 0.05% FS |
| Creep | ±0.02% FS / 30min |
| Overload Rating | 150% FS |
| Zero unbalance | ±1% FS |
| Protection Level | IP66, IP67 |
| Compensated Temp. Range | -10 to 55oC |
| Operating Temp. Range | -30 to +80oC |
| Temp. Coefficient of Zero | 0.03% FS /10oC |
| Temp. Coefficient of Span | 0.016% FS /10oC |
| Input Resistance | 365±5Ω |
| Output Resistance | 350±3Ω |
| Insulation resistance | ≥5000MΩ @ 50VDC |
| Electric Connection | 3m cable |
