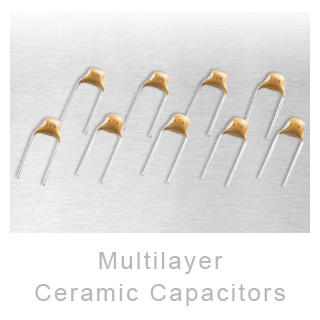

MLCC Radial Leaded Multilayer (MONO) Ceramic Capacitor

Type
cc41 cc4 cc42 (npo)
ct41 ct4 ct42 (x7r)
ct41 ct4 ct42 (y5v z5u)
capacitance range
0.1pf - 0.22uf
100pf - 2.2 uf
1000pf - 14.7uf
temperature coefficient
0â±30ppmâ��(-55â�� - +125â��)
â±15â��(-55â�� - +125â��)
+30% - 80%(-25� - +85�)
insulation
resistance
c�10nf ir>10000mohm
c>10nf c.r>100s
c�25nf ir>4000mohm
c>25nf c.r>100s
dielectric test voltage
2.5ã�wvdc
dissipation factor
0.15%max â±0.2 (20â��, 1mhz, 1vdc, 75%)
2.5%max â±0.2 (20â��, 1khz, 1vdc, 75%)
3.5%max â±0.2 (20â��, 1khz, 0.3vdc, 75%)
voltage ratings
25, 50, 63, 100vdc
25, 50, 63vdc
capacitance
tolerance
b=â±0.1pf, c=â±0.25pf, d=â±0.5pf, f=â±1%, g=â±2%, j=â±5%, k=â±10%, m=â±20% (b.c.d for c.
