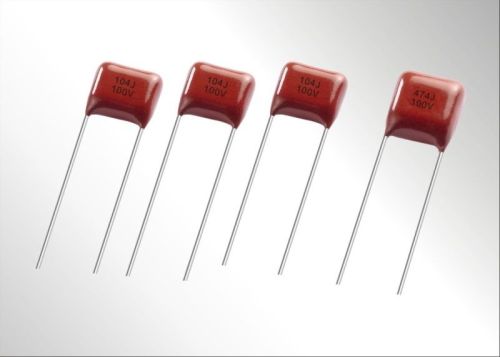

Features metallized polyester film, non-inductive wound construction.
Small size and excellent self-healing property.
Available on tape and reel for automatic insertion.
Applications suitable for blocking, by-pass and coupling or dc and signals to vhf range.
Widely used in filter and low pulse circuits.
Specifications reference standard: iec 60384-2
operating temperature: -40â°c - +85â°c
capacitance range: 0.001uf - 1.0uf
capacitance tolerance: â±5%(j), â±10%(k), â±20%(m)
rated voltage: 50vdc, 63vdc, 100vdc
dissipation factor: 1% max. At 1khz, 20â°c
dielectric strength: 160% of rated voltage for 5 sec.
Insulation resistance: 15,000 mohm min. For c�0.33uf
5,000 mohm*ufc min. For c>0.33uf (20â°c, 1min)
notes
customization for special specification and requirement is available.
Kindly contact with info at kowarytech.com for product datasheet.
