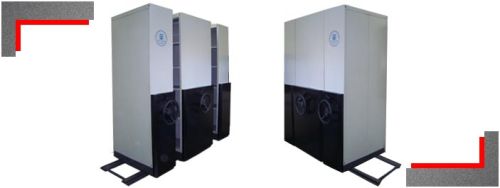

Mobile Compactor Storage Systems

′SQUARE SYSTEM′ provides you most economical & efficient storage and retrieval system. Ordinary fixed storage racks require lots of productive space for operating them! Over 60% of space is wasted in gangways and aisles.Advent Mobile Compactors provide an excellent utilization of your costly space! Mobile Compactors also provide a clean and dust free storage to your documents, records and commodities!

SQUARE Mobile Compactors Carry Special Features:

body
Body of compactor is made of prime quality CRCA steel sheet. All parts are Powder coated. The thickness of powder coating is within-60-80 Microns.

shelf
Each Body having four adjustable shelves which can be adjusted every 40mm in height. The loading Capacity per shelf is 75 Kilogram.

base
Base is made of prime quality CRCA Press Formed Steel Section. All parts are Powder coated. The thickness of powder coating is within-60-80 Microns.

shelf
Every Mobile Unit is equipped with 4 / 6 Units of 100mm Diameter Solid Steel Wheels. Each wheel comes with 2 unit of ball bearing. The advantage of design are less Noise emission, less wear & tear on the track surfaces and less physical efforts required for moving along the track.

moving mechanism
Body of compactor is made of prime quality CRCA steel sheet. All parts are Powder coated. The thickness of powder coating is within-60-80 Microns.

anti-topple arrangement
The track & trolley system is provided with a unique anti-topple arrangement, which ensure that each individual body moves without any chance of toppling or dislocation.

track
This Most vital part of the product is made of heavy, solid steel bar, welded on press formed steel channels to provide high rigidity and alignments. All parts are Powder coated. The thickness of powder coating is within-60-80 Microns.

rubber stud
The rubber stud is used to minimize noise emission and prevent scratches when the respective bays are closed or moved.

lock device
Provided with central locking system for security feature to allow Confidential Storage.

packing
Complete Knock Down (CKD) packing is provided that is convenient to carry and minimizes damages and maximizes container space.
