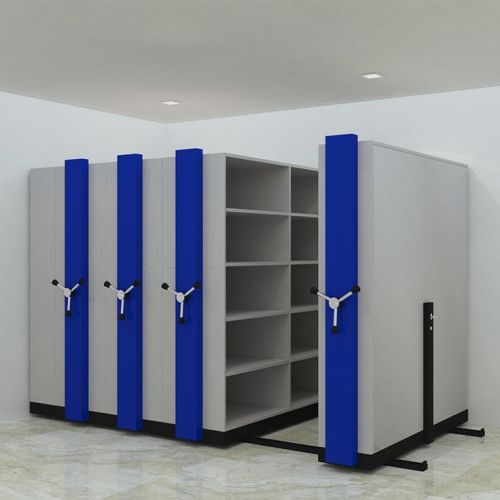

Mild Steel Mobile Compactors Storage System for Industrial

1. Type of System:
Manually Operated / Mechanically Operated Mobile Storage Compactor System

2. Construction:

• Heavy-duty modular design made from CRCA (Cold Rolled Close Annealed) steel sheets.

• Panels and components fabricated using CNC machines for accuracy and perfect alignment.

• All units are powder-coated after a 7-tank pre-treatment process to ensure corrosion resistance and durability.

3. Drive Mechanism (for Mechanized Type):

• Smooth chain & sprocket drive mechanism.

• Easy-to-operate hand wheel or handle for effortless movement of units.

• Mechanism mounted on precision-engineered rails for smooth, noiseless, and jerk-free operation.

4. Carriage Assembly:

• Made of heavy gauge formed channels.

• Fitted with anti-friction ball bearings or heavy-duty rollers for smooth movement.

• Load-bearing capacity designed to handle heavy storage loads.

5. Shelving Configuration:

• Adjustable shelves with multi-bend design for high strength.

• Shelves can be adjusted at different pitch levels to suit varied storage needs.

• Each shelf load capacity: Up to 80–100 kg UDL (Uniformly Distributed Load).

6. Track System:

• Tracks made from cold rolled bright steel or MS channels.

• Anchored firmly to the floor with necessary leveling arrangements.

7. Safety Features:

• Locking arrangement provided for securing the entire system.

• Central locking or individual locking options available.

• Anti-toppling and anti-tilt safety features for stable operation.

• Optional aisle lock for restricting unauthorized access.

8. Finishing:

• Powder coating in standard shades (custom colors available on request).

• Smooth, scratch-resistant, and long-lasting surface finish.

9. Dimensions (Typical):

• Height: 1980 mm (customizable)

• Depth: 450 mm / 600 mm (customizable)

• Width: 900 mm per bay (customizable as per layout)

10. Applications:
Ideal for offices, banks, hospitals, libraries, government departments, archives, and industrial record rooms where space optimization and secure storage are essential.
