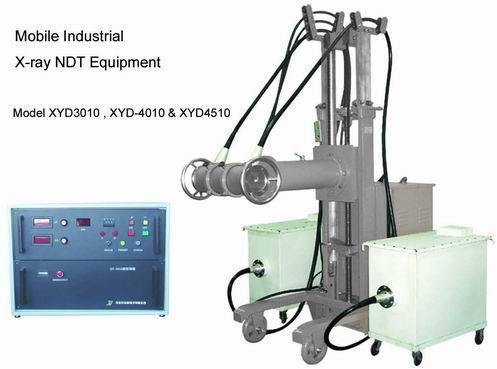

Mobile Industrial X-ray NDT Equipment

Mobile industrial X-ray detection machine is mainly used for the online product testing and laboratory testing products. It uses metal ceramic X ray tube with water or oil cooling, can work continuously; X-ray real-time imaging system supporting for real-time detection（dynamic or static）。
characteristics：
Manual automatic working state choice
Size focus working state choice
Tube voltage tube current exposure time presets display
Over temperature protection, over-voltage protection, over current and owe current protection
Cooling water owe current protection thermal automatic refrigeration
Lead door switch combined transport interlocking protection
Sound and light alarm prompt
Centralized control simple operation
Timing range: 0.1 99.8 points, 99.9 is point is continuous working state.
Basic configuration：
　1、Ｘ-ray tubes　2、HV cable　3、positive high voltage generator 、negative high voltage generator　4、controller 　5、cooling system　6、unwheeling　7、Low voltage cables and water pipes, Tubing, etc
Model Tube voltage(kv) Max. Tube current(mA) Focus dimensions Max Penetration A3 steel(mm) Sensitivity
XYD-1520 30－150 1-20
1-4 3.0×3.0
0.4×0.4 25(18) ≤1.5
XYD-22510 40－225 1-10
1-3 3.0×3.0
0.4×0.4 45(33) ≤1.5
XYD-3010 40－300 1-10
1-3 4.0×4.0
1.2×1.2 70(50) ≤1.5
XYD-3510 50－350 1-10
1-3 3.5×3.5
1.5×1.5 80(56) ≤1.5
XYD-4010 60－400 1-10
1-3 3.5×3.5
1.5×1.5 95(70) ≤1.5
XYD-4510 60－450 1-10
1-2 4.0×4.0
1.5×1.5 105(80) ≤1.5
　Note: data in the bracket is the penetration thickness when furnished with the industrial TV
