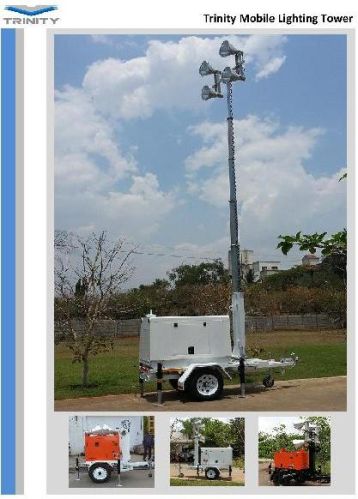

Mobile Light Tower

Technical specifications
specification model
tlt-7010 tlt-5040
model variant dx ex ex
extended height 9 m 9 m 9 m
generator rating 7.5 kva 7.5 kva 5 kva
sound level
fuel tank capacity 80 litre 35 litre 20 litre
luminaries
total wattage 4 x 1000 4 x 1000 4 x 400
type of lamps mh mh mh
lumens 360000 360000 144000
ip class 55 ( optional 65)
dimensions - l x w x h in mm
towing dimensions-mm 3525 x 1312 x 3121 2950 x 1190 x 2925 2950 x 1190 x 2925
working dimensions-mm 3525 x 2080 x 9000 3690 x 2340 x 9000 3690 x 2340 x 9000
engine
make mitsubishi greaves mitsubishi greaves lombardini greaves
model l2e g600w l2e g600w 15ld440 kd440
fuel diesel diesel diesel
rpm 3000 3000 3000
cooling water cooled water cooled air cooled
bhp 11 11 8
displacement 635 611 cc 635 611 cc 442 cc
no of cylinders 2 2 1
alternator
make meccalte nsm linz
frequency 50 hz 50 hz 50 hz
power for lights 4 kw 4 kw 1.6 kw
auxiliary power 2 kw 2 kw 2.4 kw
trailer
no of wheels 2 2 2
tyre size 15" 16" 16"
stabilisers jacks 4 no 3 no 3 no
front jockey wheel 1 1 1
coupling 2" ball hitch hook tow hook tow hook
manual parking brake optional no no
suspension leaf springs, 2 no no leaf springs no leaf springs
towing a-frame tow bar a-frame tow bar a-frame tow bar
lifting provision fork pockets crane hook eyes crane hook eyes
mast
mast type fully vertical-telescopic, electroplated
no of segments 6
winch mechanical (optional-electrical)
mast rotation manual, 360 degrees (optional)
max wind speed 110 kmph
above specifications are subject to change due to continuos upgradation of the product.
