Mobile Magnetic Card Reader

We are offering mobile magnetic card reader m01.
view larger image
displaying 1/1
displaying 1/1

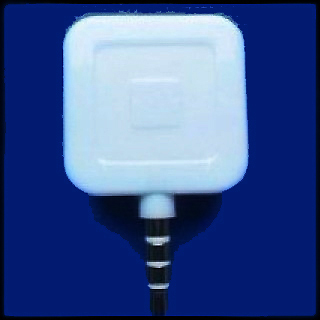

mobile magnetic card reader m01
item#: d-think_m01
retail price: us$0.00
wholesale price: us$€
¥
15.20
start from: 200 unit(s)
manufactured by: d-think technologies,inc.
weight: 0.05 kg(s)
qty.range(unit) price(per unit) discount
200-299 us$15.20 no
300-499 us$13.68 10%
500-999 us$12.92 15%
1,000-1,999 us$12.16 20%
2,000-4,999 us$10.34 32%
5,000+ us$8.36 45%
description:
this mobile magnetic reader is the new star in the mobile phone payments. It is the fastest and most convenient card reader.
this exciting application is something that will add tremendous value to your traditional merchant solutions by empowering your customers to use their new merchant accounts on the run without having to purchase additional expensive hardware.
the consumer who wants to pay by this way only needs mobile phone (with the software plat) and the product. It will be faster, more convenient and more advanced.
parameter
• application: magnetic card, credit card, bank cards, magnetic stripe
• trips: 1
• life time: 100,000times
• hardware plat: mobile phone (iphone, android, ipad, blackberry, htc etc.)
• physical interface: earphone
• power: from phone
• communication: by earphone
• dimension: 25mm*25mm*12mm
• weight:10g
specification
test item
specifications
test condition
d.c. Resistance
d.c.
280ω±15%
at 20°c
impedance
1khz
110mh±20%
0.3v
insulation resistance
d.c.
50 mω min
250v
core earth
d.c.
10ω max
at 20°c
recording density
bpi
75/210
read output
mvp-p
28±20%
difference of azimuth
10khz
2db min
move card speed
ips
7.5
