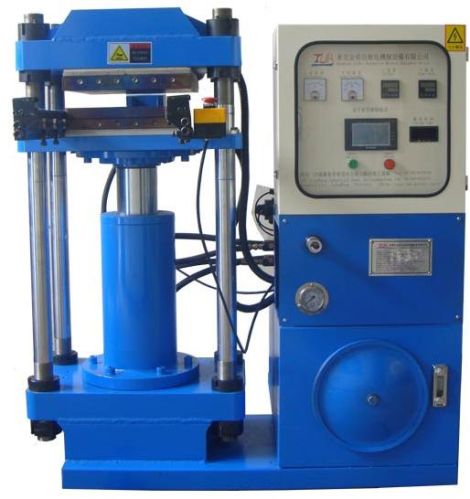

Mobile Phone Cover Machine For Iphone, Brand Name : JINYU

We are offering jy-a02 the newest mobile phone cover machine for iphone.
technical parameters about mobile phone cover machine:
type 30t 50t 63t
worktable (mm) 350*350 350*400 400*400
power specification 3 phase 4 wire, 380v 3 phase 4 wire, 380v 3 phase 4 wire , 380v
total power (kw) 14.5 16.3 16.3
electrical power (kw) 3.7 5.5 5.5
heating power (kw) 10.8 10.8 10.8
piston diameter (mm) î¦150 î¦180 î¦200
weight (kw) 2500 3000 5000
size (mm) 1160*1350*1250 1210*1450*1300 1360*1610*1400
features of mobile phone cover machine:
1. Nodular cast iron, has high tensile strengh and toughness after aging carbonization treatment;
2. Use japan noku oil seal, abrasion resistance, heat resistance and long service life;
3. Use the hrc55-58 vertical post, middle carbon steel treatment hard-chromed treatment, ensure the machine precision;
4. High and low pressure oil pump combination, cooling device for oil circuit system;
5. Mator auto shutdown once it delay, make it better protect the oil system, poweer saving at the same time;
6. Operate the machine via plc panel, use 24v circuit accessories, safe and durable.
details description:
1. Automatic response: auto stop push and mold stripping;
2. With dust-proof mat and protective coating, improve the degree of precision, wear resistent;
3. Control the pressure;
4. Rail enter and out: safe, bearing draving: increase life expectancy;
5. Workbench with nitriding treatment;
6. Taiwan solenoid valve, with hydraulic cooling system;
