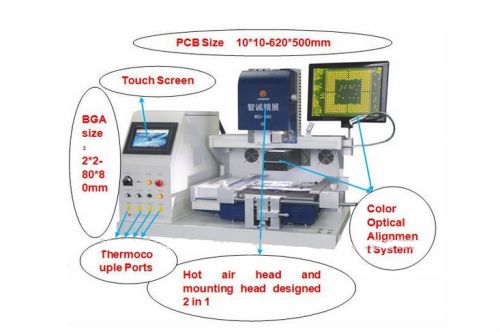

Mobile Phone Infrared Bga Rework Station

₹ 5.82 Lakh / 7500 7500 Set

MOQ1 Set(s)
skypesensenhenhao
emailjoy@wickon.net
whatsapp+8613424013606
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are offering 660 mobile phone infrared bga rework station for laptop motherboard. Total power：max 6600w upper heating power：1200w lower heating power：second zone: 1200w, third zone: ir....

Company Information

henzhen Wickon Electronic Technology Co., Ltd.

Member Since 9 Years
Nature of Business Supplier
Year of Establishment 2003

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering 660 mobile phone infrared bga rework station for laptop motherboard.
Total power：max 6600w
upper heating power：1200w
lower heating power：second zone: 1200w, third zone: ir 4200w
power supply：(single phase)ac 220v±10v 50hz±3hz 5.4 kva
machine dimension：l1200*w800*h900mm
positioning way：v-shape card slot, pcb holder can be adjustable by x and y axes
temperature controlling ：k-type thermocouple closed loop control, independent temperature control
pcb size(max)：450*450mm
pcb size (min)：10*10mm
pcb blowup diploid：2-50x
weight：150kg
thermocouple ports：3units
