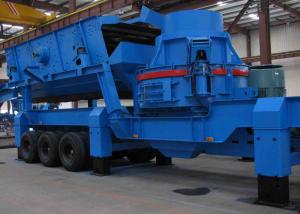

Mobile Sand Making Machine

Mobile Sand Making Machine
Application:
Mobile Sand Making Machine is widely used in metallurgy，chemical，building materials and hydroelectricity which usually need movable operation in material processing. Especially suitable for operation of liquid stones like highway，railway，hydroelectric project
Working Principles:
The sand making machine adopts 5X series ,bring three kinds of crushing method together .The guard board around can be regulated up and down if it is worn down ,which can increase the stock utilization and extend the service life above 50%.After the optimal design of the deep cavity rotor ,the throughputs can be increased to 60%.It is used for stone aggregate fine crushing and shaping .Large thruput ,strong flexibility ,efficient and economic .The materials are conveyed to the sand making machine uniformly through the feeder. The primary materials consist of closed loop system to realize the loop crushing of materials .And the demanding materials are discharged by the conveyor .
Characteristics:
The Mobile Sand Making Machine is flexible and has strong mobility .It can save lots of construction fees and can crush the materials on site .Besides ,it can move along the exploit area forward to low down the shipping cost .It is mainly used in crushing, screening and delivering rocks and processing materials .
Technical Parameters
PP Mobile sand making machine PP5000VSI PP5000VSIS PP6000VSI PP7000VSI
Shipping Size
Length （mm） 98000 11280 10180 11180
Width （mm） 2460 2780 2780 27890
Height （mm） 4200 2500 4200 4316
Weight （kg） 21600 32000 24600 33650
Axle Load （kg） 14600 18800 16500 23263
Tractor weight （kg） 7000 13200 8100 10387
Mobile sand making machine
Type VI-5000 VI-5000 VI-6000 VI-7000
Max feeding size （mm） 65（80） 65（80） 80（100） 80（100）
Throughput （t / h） 80-150 80-150 120-250 140-250
Vibrating screen
Type 3YK1545
Belt conveyor
Type B650×6.5 B800×7 B1000×7.2
