Mobile Sub Base Mixing Plant

We are offering mobile sub base mixing plant.

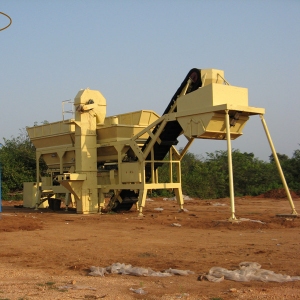

ywbs mobile sub base mixing plant, is mainly used in the construction of base layer of high-way, urban road, airport, seaport and producing the gray soil layer and mixing the compactable concrete. A trailing unit is designed to fulfill a variety of tasks that include collecting, mixing, hoisting and storage with compact structure, precise weighing and good mixing. The perfect mobility makes it to be ideal plant for the construction in long and densely-located sites.
mobile stability soil mixing plant:
1. For the construction in long & densely-located sites
2. Durable
3. Perfect after-service
mobile stability soil mixing plant is for the construction in long and densely-located sites. It is with easy operating scientific structure. A trailing unit combines all functions of modular stability soil mixing facilities.
4.it is composed of the systems of material supply,weighing,mixing and electric control;
5.its discharge height is 2.8m,and it can mix of concrete;
6.with the loader to feed material,it can store four types of aggregates at the same time and also with two cement silos and their respective screw conveyor;
7.with electronic scales to measure and the mixing host is twin-horizontal-axis type;
8.electrical system is equipped with ipc,printer and so on to realize the centralized control and overall management;
9.with the functions of real-time display,information storage and automatically equalizing the fall during the production process;
10.it can be controlled by computer and manually,and they can be easily converted through the switch;
11.the modular design is convenient for the containerized transport;
12.with the optimized design of the concrete batch plant,it can be overall transferred by the towing vehicle.
main technical parameters:
model ywbs200 ywbs300
capacity 200tph 300tph
product hopper 5m3 6.3m3
ag size
batching no. 4 4
accuracy ag ±3% ±3%
cement ±1% ±1%
water ±1% ±1%
total power 66kw 85kw
discharge height.
