Our online and offline modes of payment are 100% secured and facilitate payment in cash and bank transfer. Thus, we are highly preferred by the clients. We make sure that the packing of our products is done using quality materials and advanced machines. Our packaging experts handle the entire task of packaging keeping in mind the requirements of the clients.
Features:
Any Van, truck and vehicle have facility
Available with outdoor LED Screen with high quality pixels and Brightness
Support with generator power
Available with hydraulic jack systems

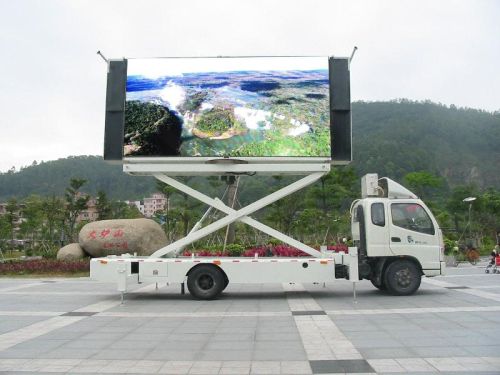

Mobile Van Led Screen:
High brightness with good pixels
Live coverage digital systems
| Pitch | P6 | P8 | P10 |
|---|---|---|---|
| Cabinet size | 768 x 768 x 75 mm | 768 x 768 x 100 mm | 960 x 960 x 100 mm |
| LED Module size | 192 x 192 mm | 256 x 128 mm | 320 x 160 mm |
| Driver IC | MBI 5124 | MBI 5124 | MBI 5124 |
| Brightness (calibrating value) |
≥5500 CD/㎡ | ≥6500 CD/㎡ | ≥7500 CD/㎡ |
| Viewing Angle | Horizontal: ≥160Ëš,Vertical : ≥ 60Ëš | Horizontal: ≥160Ëš,Vertical : ≥ 60Ëš | Horizontal: ≥160Ëš,Vertical : ≥ 60Ëš |
| Best Viewing distance(m) | >2 m | >3 m | >6m |
| Gradation/Colour | 13 bit per colour | 13 bit per colour | 13 bit per colour |
| Pixel Failure Ratio | <0.0001 | <0.0001 | <0.0001 |
| Refresh Rate | ≥400 Hertz Max. 2000 Hz | ≥400 Hertz Max. 2000 Hz | ≥400 Hertz Max. 2000 Hz |
| Input Voltage | 110VAC~240VAC 50Hz (can select) | 110VAC~240VAC 50Hz (can select) | 110VAC~240VAC 50Hz (can select) |
| MTBF | >10,000 hours | >10,000 hours | >10,000 hours |
| Life time | >100,000 hours | >100,000 hours | >100,000 hours |
| Unit board splicing gap | < 1mm | < 1mm | < 1mm |
| Waterproof Protection | IP65 | IP65 | IP65 |
| Cabinet Weight | 12 KG | 18 KG | 25 KG |
| Working temperature | -20Ëš to 60Ëš(Celsius) | -20Ëš to 60Ëš(Celsius) | -20Ëš to 60Ëš(Celsius) |
| Working humidity | 10-95%RH | 10-95%RH | 10-95%RH |
| Signal compatibility | S-Video; DVI,HDMI,HD-SDI, RGB; | S-Video; DVI,HDMI,HD-SDI, RGB; | S-Video; DVI,HDMI,HD-SDI, RGB; |
| Control mode | Synchronization control | Synchronization control | Synchronization control |
| Certificate | CE, FCC, RoHS,CCC,ISO9001 | CE, FCC, RoHS,CCC,ISO9001 | CE, FCC, RoHS,CCC,ISO9001 |
| Video display function | Synchronous display kinds of text, graphics, signs, flashes. And any signal from TV, VCD, DVD, Camera, and scanner and so on, support PAL, NTSC. | Synchronous display kinds of text, graphics, signs, flashes. And any signal from TV, VCD, DVD, Camera, and scanner and so on, support PAL, NTSC. | Synchronous display kinds of text, graphics, signs, flashes. And any signal from TV, VCD, DVD, Camera, and scanner and so on, support PAL, NTSC. |
| Communication medium and controlling distance | Net Cable: ＜ 100m Multi-model Fiber Optic＜500m, Single Fiber Optic＜20KM, |
Net Cable: ＜ 100m Multi-model Fiber Optic＜500m, Single Fiber Optic＜20KM, |
Net Cable: ＜ 100m Multi-model Fiber Optic＜500m, Single Fiber Optic＜20KM, |
