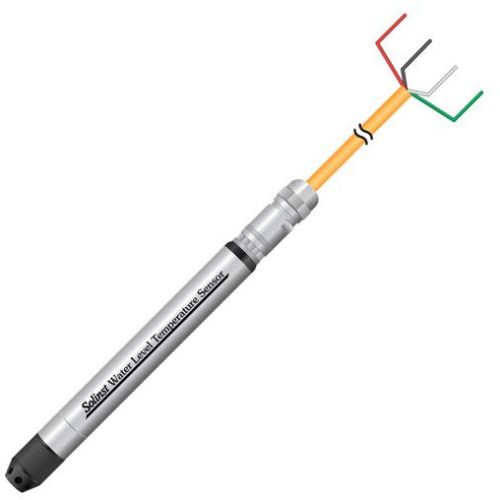

Model 301 Water Level Temperature Sensor, Brand Name : Solinst

Description

The Solinst Water Level Temperature Sensor is a compact, all-in-one submersiblehydrostatic level transmitter that provides continuous, stable and accurate waterlevel and temperature readings for a wide variety of applicationsThe water level pressure sensor and temperature sensor are enclosed in a slim,robust 22 mm x 192 mm (7/8\\\" x 7.55\\\") 316L stainless steel housing. Double o-ringseals prevent leaks and a Faraday cage design protects against power surges andlightning. Each probe features a removable nose cone for optional use of the 1/4\\\"NPTM threaded connection.The water level pressure sensor and temperature sensor are enclosed in a slim,robust 22 mm x 192 mm (7/8\\\" x 7.55\\\") 316L stainless steel housing. Double o-ringseals prevent leaks and a Faraday cage design protects against power surges andlightning. Each probe features a removable nose cone for optional use of the 1/4\\\"NPTM threaded connection.The Water Level Temperature Sensor works with digital and analog protocols –MODBUS, SDI-12, and 4-20mA (add-on Current Loop Adaptor). They are easy tointegrate into your existing SCADA or PLC systemsCommunication cable assemblies are available in lengths up to 300 metres. Thecables are easily and securely attached to the sensor using a threaded connection.Simple PC software utilities are used to set up the sensor for the different protocols,perform simple diagnostics, and update sensor firmware if required. A USB-Aprogramming cable is provided for connection to the PC.
