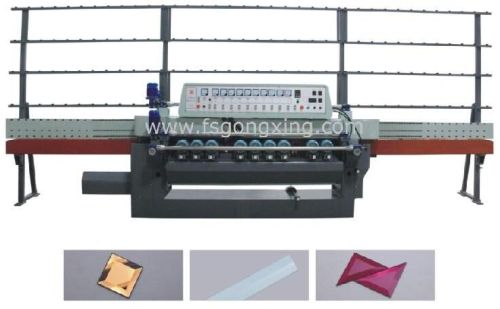

Model GXM10A Glass Straight Line Beveling Machine

Model gxm10a glass straight line beveling machine (chain transmission)
model gxm10a is mainly used for processing straight-line bevel edge and round bottom edge of flat glass.
1)10 spindles
2)front beam up and down lifting function
3)grinders advancedretreated together
4)thick chain board
5)state-of-the-art frequency control technology siemens motor on transmission.
6)important parameters of speed, variable angle, thickness, amount of grinding feed and height of the front beam up and down lifting, are intuitively shown on numerical display.
7)rear board auto cleaning function
8)oil auto-adding
9)new waterproof material on structure
with the above functions, model gxm10a glass beveling machine could effectively extend the service life, reduce the maintenance costs and running more smoothly ,safely and conveniently.
specifications:
min. Glass size: 15mm
max. Glass size: 3*3m
grinding speed: 0.5-6mmin
glass thickness: 3-12mm
angle range: 2 degree-45 degee
max. Bevel width: 40mm
power: 22.6kw
dimension: 6.46*1.21*2.54m
total weight: 4000kg
