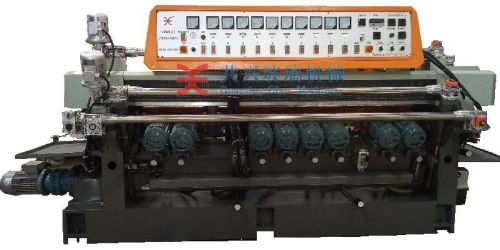

Gxm10as (back pad be ground flat on machine) glass straight line beveling machine
features and configurations:
1.10 spindles, chain transmission.
2.mainly used for processing straight line bevel edge, pencil edge and front arris of flat glass.
3.support a function that the back pad can be ground flat on the machine.
4.the front small press pad can be replaced separately.
5.digital display to show the speed, variable angle, thickness and feeding amount of the processing glass.
6.back chain pad with good rigidity.
7.siemens motor frequency control.
8.spindles advance and retreat together.
9.front beam and spindle are lifting independently. Good waterproof performance.
10.standard equipped auto-oiling and back pad washing function.
Technical parameters:
min. Glass size: 25mm
max. Glass size: 3m*3m
grinding speed: 0.2-6m per min
glass thickness: 3-12mm
angle range: 2 degrees - 30 degrees
max. Bevel width: 30mm
power: 21.1kw
dimension: 6.46*1.21*2.65m
total weight: 4000kg
