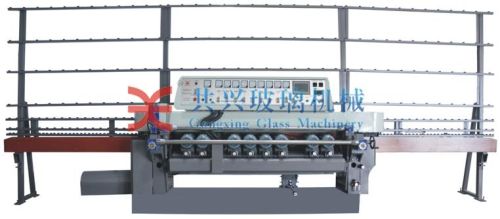

Model GXM9B-W Glass Wave Beveling Machine, Brand Name : Gongxing

Model gxm9b-w glass wave beveling machine
features and configurations:
1) 9 spindles.
2) mainly used for processing the general size of straight line bevel edge and wave bevel edge of flat glass.
3) controlled by plc.
4) drove by servo motor.
5) with six basic waveforms of wavelength.
6) equipped 45 degree swing angle.
7) back pad auto cleaning function.
8) spindles advancedretreated together, and display the value.
9) the wavy bevel grinding is continuously adjustable.
Technical parameters:
min. Glass size: 100ã�100mm
max. Glass size: 3ã�3m
grinding speed: 0.5-3mmin
glass thickness: 3-12mm
angle range: 2â°-45â°
max. Bevel width: 25mm
power: 21.1kw
dimension: 6.46ã�1.21ã�2.54m
total weight: 4000kg
