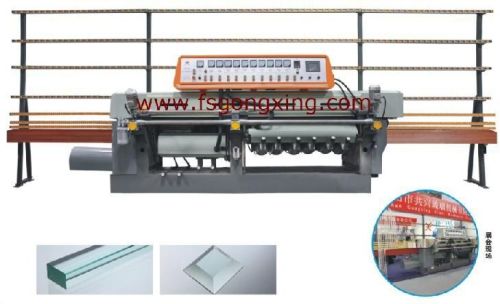

Model GXZ10D Glass Mitering Machine, Brand Name : Gongxing

Model gxz10d
10 spindles glass straight line mitering machine (bearing transmission)
it is suitable for grinding and polishing the bottom edge, bevel edge of variable angle and arris of flat glass.
1)the front six grinders and the two in the middle are able to be adjusted freely between 45 degree-90 degree. Straight and bevel edge could be finished in one time.
2)the glass straight edge and bevel edge can be processed in one time.
3)chainless rolling bearing structure on conveyor board.
4)using man-machine interface, showing the thickness of the processing glass, variable angle, grinding speed and other parameters.
With the above functions, model gxz10d glass mitering machine can make a smoothly transmission, a faster speed and a steady quality. And it is a kind of safety, simply and conveniently operation machine.
Specifications:
min. Glass size: 50*50mm
grinding speed: 0.5-10mmin
glass thickness: 3-30mm
max.grinding amount of arris: 25mm
power: 24.3kw
dimension: 6.8*1.3*2.6m
total weight: 6500kg
