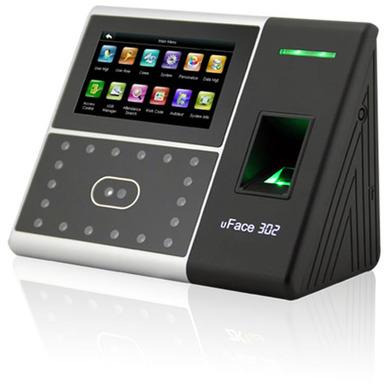

Model Name/Number UFACE302 Usage/Application Attendance Access Control Type Of Attandance System Fac

Model Name/Number	UFACE302
Usage/Application	Attendance Access Control
Type Of Attandance System	Face Finger Card Pin
Brand	ESSL
Power Supply	12V 3A
Operating Humidity	20%-80%
Size	193.6 x 165.2 x 86mm
Face Capacity	3000
Fingerprint Capacity	2000
Display	4.3-Inch Touch Screen
ID Card Capacity	10,000

Features:
Face Capacity : 3000,
Fingerprint Capacity : 4000 ,
ID card Capacity : 10000 ,
Transaction Capacity : 100000.
STORAGE CAPACITY

• Face Capacity : 3000
• Fingerprint Capacity : 4000
• ID card Capacity : 10000
• Transaction Capacity : 100000
• Push Data : Yes
• Communication : TCP/IP, RS232/485, USB Host
• Display : 4.3-Inch Touch Screen

STANDARD FUNCTIONS

• Automatic Status Switch, Self-Service Query, Work Code, SMS, DST, T9 Input, 9 Digit User ID, Scheduled Bell,
• Photo ID Access Control Interfaces for: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
• Wiegand : Output

OPTIONAL FUNCTIONS

• MiFare Card, Wi-Fi, 3G, 2000 mAh Backup Battery, FR-1200

POWER & ENVIRONMENT

• Power Supply : 12V 3A
• Operating Temperature : 0 °C ~ 45 °C
• Operating Humidity : 20% - 80%
• Dimension (in mm) : 193.6 x 165.2 x 86
• Package Weight : 1.6 kg

FEATURES

• High verification speed
• Advanced and user-friendly UI
• Chip encryption for firmware protection
• - Optional built-in battery backup providing approximately, 4 hours of continuous operation
• Easy to extend functions and customize client’s requirements
• One face template is registered for one user only
