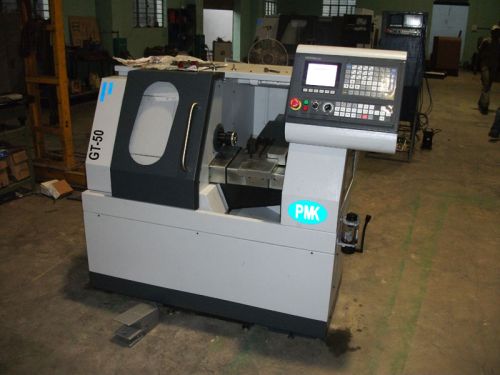

Contact SupplierWe are one of the well-known Manufacturers, Exporters and Suppliers of the CNC Turning Centers . Our company uses the raw materials and components of the highest grade in the manufacture of the Model No. Features
Technical Specifications
Capacity | |
Max. Turning DIA. | 55mm |
Max. Turning Length | 70 mm |
Swing Over bed | 150 mm |
STD. Turning Dia. | 50 mm |
Main Spindle | |
Spindle Nose | A2-3 |
Bore Through Spindle | 29 mm |
Bar capacity | 18 mm |
Chuck Size | 95 mm* |
Spindle Drive | |
Spindle motor Power Cont./15 Min. Rating | 3 HP |
Speed Range (RPM) | 3500 |
Axes Slides | |
X Axis Stroke | 125 mm |
Z Axis Stroke | 90 mm |
Rapid Traverse : X Axis | 20 M/Min. |
X-Axis Guide ways | LM |
Rapid Traverse : Z Axis | 20 M/Min. |
Z-Axis Guide ways | LM |
Turret | |
Turret Type | Linear |
No. of Stations | 2 |
Max. Boring Bar Dia. | 20 mm |
Tool cross section | 16 x 16 |
Accuracy | |
Position Accuracy | 0.015 mm |
Repeatability | ± 0.003 |
Machine Dimensions | |
Dimension (LxBxH) | 1300 x 800 x 1350 |
Weight (Approx.) | 1000 Kg. |
Note : Hydraulic chuck available as option in GT - 50
