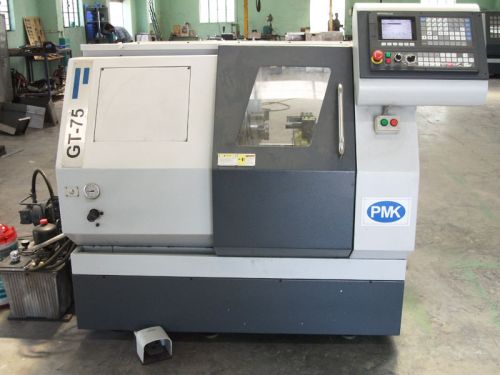

Our company is actively involved in the manufacture of the CNC Turning Centers (Model No. GT 75). We manufacture high quality CNC Turning Centers with the best-grade raw material and components. We ensure timely delivery of the product so as to meet the customer demands in the best possible way. Features
Technical Specifications
| Capacity | |
| Max. Turning DIA. | 100 mm |
| Max. Turning Length | 150 mm |
| Swing Over bed | 200 mm |
| STD. Turning Dia. | 75 mm |
| Main Spindle | |
| Spindle Nose | A2-4 |
| Bore Through Spindle | 32 mm |
| Bar capacity | 20 mm |
| Chuck Size | 135 mm |
| Spindle Drive | |
| Spindle motor Power Cont./15 Min. Rating | 3 HP |
| Speed Range (RPM) | 3500 |
| Axes Slides | |
| X Axis Stroke | 200 mm |
| Z Axis Stroke | 150 mm |
| Rapid Traverse : X Axis | 20 M/Min. |
| X-Axis Guide ways | LM |
| Rapid Traverse : Z Axis | 20 M/Min. |
| Z-Axis Guide ways | LM |
| Turret | |
| Turret Type | Linear |
| No. of Stations | 3 |
| Max. Boring Bar Dia. | 32 mm |
| Tool cross section | 20 x 20 |
| Accuracy | |
| Position Accuracy | 0.015 mm |
| Repeatability | ± 0.003 |
| Machine Dimensions | |
| Dimension (LxBxH) | 1700 x 1125 x 1500 |
| Weight (Approx.) | 1800 Kg. |
