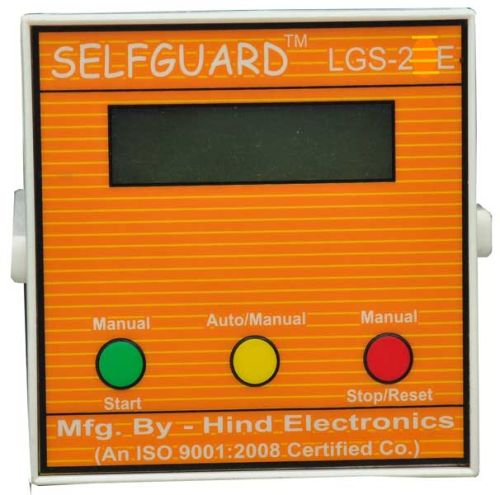

Model No. LGS-2E Generator Control Unit

Avail from us Generator Control Unit Model No. LGS-2E which is an engine control device with auto start cum stop unit. The Microcontroller/microprocessor based Engine Control cum Auto start and stop device is designed as per the international quality standards. Generator Control Unit comes with Backlit LCD display for easy reading of parameters. Moreover, all the inputs like main, generator and battery voltages are fully isolated to avoid malfunctioning of system. Model No. LGS-2E Suitable for all type of gensets. Note : Molded in 96mm * 96mm * 110mm plastic cabinet is suitable to mount in panel. Protection And Supervision :LCD Display

• All the working status of unit according to the present supply is displayed.
• Displays Voltage, Current, Frequency, RPM, Battery voltage and Engine run time when the generator is in running Condition.

Push Buttons :

• Manual Start
• Auto/Manual
• Manual Stop/Reset

Functions :

• LLOP Trip
• HWT Trip
• LFL Trip
• Engine service due tripping
• Auto/Manual start
• Auto/Manual stop

Visual Display :

• Voltage
• Current
• Frequency
  • RPM
  • Engine Run Time
  • Battery Voltage

Alternator Safety Features :

• Over and under voltage trip
• Over and under frequency trip
• Over and under RPM trip
• Over current trip

Note : The over current tripping and Engine Service due time can be set manually.
