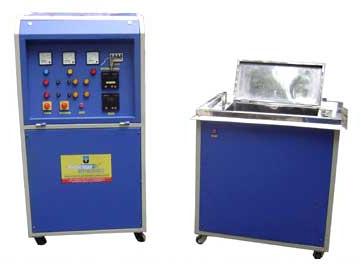

Model No. SCUCS 02 Single Chamber Ultrasonic Cleaning System

The company is known as the prominent Manufacturer, Exporter and Supplier of the advanced Single Chamber Ultrasonic Cleaning System. Our Single Chamber Ultrasonic Cleaning System is designed to be set on a countertop or to be placed into a cut away, or to put in a custom built Stainless Steel Frame for portability. Our Single Chamber Ultrasonic Cleaning System is adaptable to any application as it can be used single or can be integrated in system.
Used For
Tough batch cleaningSingle Chamber UnitsGround in buffingRemoval of oilsPolishing compoundsHard-to-remove contaminates
Features
Mesh Type SS BasketsThermostatic Controlled HeatingTransducers Mounted on Studs by Special High Capacitance Welding
Optional Parts
Filtration SystemDigital Temperature Indicator ControllerStainless Steel EnclosureMechanical Electronic TimersOil skimmersCastor WheelsLevel Sensors
Applications
Degassing of SolventsSemiconductor ComponentsWatch PartsHomogenizing and Sono-ChemistryDental and Medical InstrumentsCosmetics and PharmaceuticalsJewelry and Precious StonesOptics and LensesPrecision MechanicsDisk-DrivesPCBs and Hybrid Circuits
Specifications
Average Ultrasonic PowerTank Material Tank outer cabinet material Tank Size L x W x H (inch ) Tank Capacity  (litres) Generator Type Input Power AC UC-150 W SS31616GSS304M.S. 7"x6"x6" 3.9Built-in seperate  1 Ph UC-250 W SS31616GSS304M.S. 10’'x8"x6"7.5Built-in seperate  1 Ph  UC-300 WSS31616GSS304M.S. 8"x8"x10" 10Built-in seperate 1 Ph  UC-500 W SS31616GSS304M.S. 15"x12"x10" 28Built-in seperate 1 Ph  UC-600 W SS31616GSS304M.S. 12"x12"x18" 40.5Built-in seperate 1 Ph  UC-750 W SS31616GSS304M.S. 15"x12"x18" 51Built-in seperate 3 Ph  UC-1000 W SS31616GSS304M.S. 24"x12"x18" 81Built-in seperate 3 Ph  UC-1500 W SS31616GSS304M.S. 30"x145"x18" 126Built-in seperate 3 Ph  UC-2000 W SS31616GSS304M.S. 30"x18"x20" 168Built-in seperate 3 Ph  UC-2500 W SS31616GSS304M.S. 36"x12"x18" 201Built-in seperate 3 Ph  UC-3000 W SS31616GSS304M.S. 40"x20"x20" 250Built-in seperate 3 Ph
