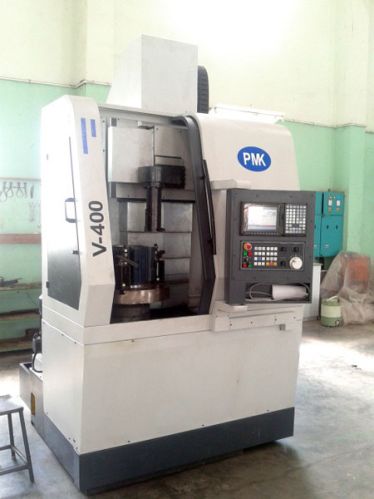

We, at Precision Machinekraft (Rajkot) manufacture CNC VTL Machines (Model No. - VTL 400 using top-grade raw materials and latest manufacturing technologies. This Model is a well-known CNC Machine and has numerous features that make it suitable for use. Features
Technical Specifications
| Capacity | |
| Swing Over Bed | 500 mm |
| Max. Turning Dia. | 300 mm |
| Max. Turning Length | 500 mm |
| Max. Work Piece wieght | 200 Kg |
| Main Spindle | |
| Spindle Nose | A 2-8 |
| Chuck Size | 250 mm x 3 Jaw |
| Spindle Motor | 7.5 11 kw |
| Speed Range | 750 1500 RPm |
| Slide | |
| X Axis Travel | 250 mm |
| Z Axis Travel | 525 mm |
| Rapid Traverse (X - Axis) | 15 M/Min. |
| Rapid Traverse (Z - Axis) | 12 M/Min. |
| Ball Screw Dia (X-Axis) | 31 x 10 mm |
| Ball Screw Dia (Z-Axis) | 40 x 10 mm |
| Z Axis Drive | 18 Nm |
| X Axis Drive | 8 Nm |
| Turret | |
| No. of Stations | 8 |
| Max. Boring Bar Dia. | 40 mm |
| Tool Cross section | 25 mm |
| Control System | |
| Control System | Siemens/Fanuc/Mitsubishi |
| Size L x B x H | 1610 x 1945 x 2730 mm |
| Machine weight | 5500 kg |
Note : Roller Guide for both Axes
