Modular Bayonet Lock Connector

Mil-C-5015 style, Approved to VG 95234 style, Reverse Bayonet Connector, approved by SNCF to NFF 61030, Conforms to LUL standards, Low Fire Hazard Thermoplastic Insert, 10amp to 42amp, -55°C to +125°C, 7 to 60 Clip retained contacts.

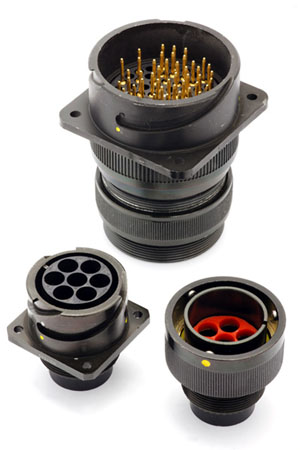

Modular Bayonet Lock Connector, Plastic Insulator.
ABCIRP connector series is derived from the American Mil-C-5015 & VG95234 specifications. The connectors are intermateable and interchangeable with corresponding types, but feature a low fire hazard thermoplastic insulator which is removable for repositioning at an alternative orientation. Contacts are industry standard 'F80' type and are retained in the insulator by means of a unique beryllium copper spring clip. Connector sealing features a stepped wire seal grommet which can remove the need to populate unused cavities with filler plugs. Crimp tooling is industry standard and contacts are inserted and removed using simple hand tools.
ABCIRPconnectors are approved to French Rail specification N.F.F. 61030
SPECIFICATIONS
STANDARD MATERIALS & FINISHES
Shell: Aluminium alloy, cadmium free plated, black passivation
Insulators: Low fire hazard thermoplastic
Contacts: Copper alloy, gold plated
MECHANICAL FEATURES
Coupling: Three pin bayonet
Polarisation: Shell key, keyway in removable insulator
Contact type: Crimp, rear insertion, front release, rear removable, p.c.tail.
Contact Arrangements: 7 to 60 contacts
ELECTRICAL DATA
Maximum contact Current Rating: 10 Amps to 42 Amps
Voltage Rating: Working 700V to 1250V DCAC Peak
Contact Resistance: 5 m ohms ma
