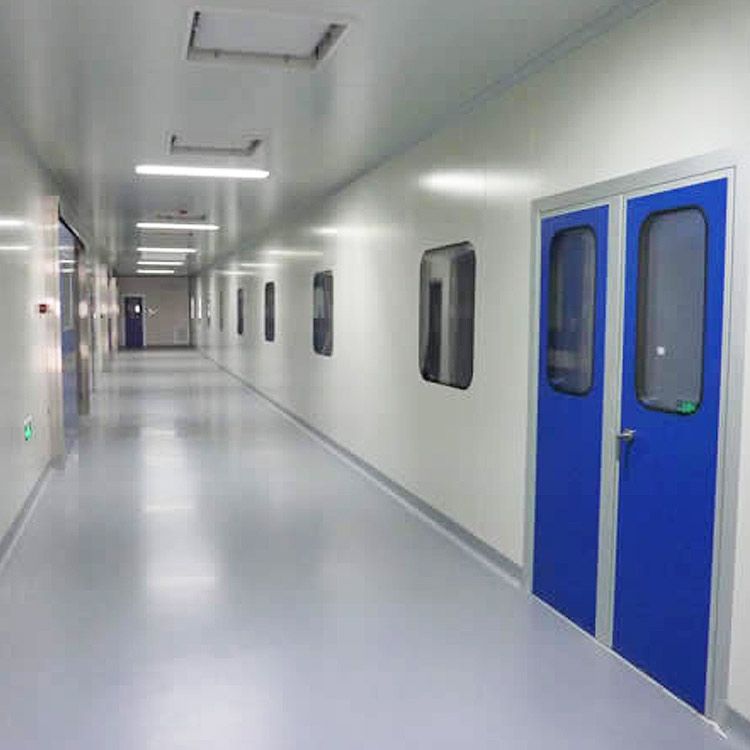

Peace Chrome Iron Modular Clean Room Partition Panel

₹ 260 / Square Feet

MOQ2000 Square Feet
MaterialIron, Metal, Stainless Steel, Wooden
Surface FinishingChrome, Finished, Unfinished, ✔ Stainless Steel SS304 / SS316 ✔ Powder-Coated Galvanized Steel ✔ High Pressure Laminate (HPL) ✔ PV
Panel Material✔ Polyurethane Foam (PUF) – Density: 40–42 kg/m³ ✔ Rockwool – Density: 48–96 kg/m³ (for fire resista
Brand NamePEACE
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Importer, Trader
Preferred Buyer Location All over the world

Company Information

Member Since 1 Year
Nature of Business Manufacturer
Year of Establishment 2024

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NamePEACE
MaterialIron, Metal, Stainless Steel, Wooden
Surface FinishingChrome, Finished, Unfinished, ✔ Stainless Steel SS304 / SS316 ✔ Powder-Coated Galvanized Steel ✔ High Pressure Laminate (HPL) ✔ PV
Panel Material✔ Polyurethane Foam (PUF) – Density: 40–42 kg/m³ ✔ Rockwool – Density: 48–96 kg/m³ (for fire resista
Open StyleFolding, Retractable, Sliding, Swing
Length55x40cm, 60x40cm, 65x40cm, 70x45cm, 75x45cm
FeatureFolding Screen, Magnetic Screen, Waterproof
Number Of FlowerClean Room Partition
Thickness20-30mm, 30-40mm, 40-50mm
PositionCommercial, Exterior
Total Carbohydrate1year, 2years
Country of OriginIndia

We manufacture high-quality modular cleanroom panels designed for controlled environments such as cleanrooms, modular operation theatres (MOTs), pharmaceutical manufacturing areas, laboratories, and food processing units.
These panels provide seamless, airtight enclosures that comply with ISO 14644, cGMP, NABH, and WHO-GMP standards.

Technical Specifications:

Panel Thickness: 50mm / 75mm / 100mm
Core Material:
✔ Polyurethane Foam (PUF) – Density: 40–42 kg/m³
✔ Rockwool – Density: 48–96 kg/m³ (for fire resistance & acoustic insulation)
✔ EPS (on request)
Surface Material:
✔ Stainless Steel SS304 / SS316
✔ Powder-Coated Galvanized Steel
✔ High Pressure Laminate (HPL)
✔ PVC-Laminated GI Sheets
Panel Width: Standard 1160mm (custom sizes available)
Panel Length: Up to 6 meters
Jointing System: Tongue & groove with concealed fasteners and silicone sealing
Surface Finish:
✔ Smooth, glossy or matt
✔ Anti-microbial & chemical-resistant coating
Fire Rating: Optional up to 2 hours with Rockwool core
Thermal Conductivity (PUF): ≤ 0.024 W/mK
Acoustic Performance: 25–35 dB sound attenuation (depending on core)

⚙️ Features & Benefits:

Airtight and seamless — prevents particulate & microbial contamination
Lightweight yet highly rigid construction
Resistant to disinfectants, impact, and moisture
Excellent thermal insulation, reducing HVAC loads
Easy to install, dismantle & modify — ideal for modular setups
Flush finishes compatible with covings, vision panels, doors & ceilings

📐 Available Options:

✅ Fire-resistant Rockwool Panels
✅ SS or HPL surfaces for harsh environments
✅ Corner covings & skirtings for GMP compliance
✅ Integrated flush vision panels & service ducts

📍 Applications:

🏥 Modular Operation Theatres & ICUs
🏭 Pharmaceutical Cleanrooms & Packaging Rooms
🧪 Research & Diagnostic Laboratories
🥗 Food & Beverage Processing Units
🔬 Electronics & Semiconductor Cleanrooms

Additional Information

Payment Terms L/C, D/A, D/P, T/TWestern Union
Port of DispatchTAMILNADU
Packaging Details✅ Primary Protection: – Each panel is individually wrapped with protective polyethylene (PE) film to prevent scratches, dust, and moisture. – Corners are secured with foam or hardboard corner guards to prevent impact damage. – Surface protection sheets (craft paper or bubble wrap) can also be applied for extra care. ✅ Stacking & Bundling: – Panels are stacked in bundles of 5–10 panels (depending on thickness and site requirements). – Bundles are tightly strapped with polypropylene/steel bands for stability. – Bundles are wrapped in stretch film/shrink wrap for additional dust & water resistance. ✅ Secondary Packaging: – For export shipments, panels are loaded into wooden crates or placed on ISPM-15 treated wooden pallets. – Wooden battens or spacers are placed between bundles to prevent shifting. – If shipped as loose bundles, they are blocked and braced inside the container to avoid movement. ✅ Markings on Packages: – Each bundle/crate is clearly labeled with: 📌 Product name & grade 📌 Quantity of panels (Nos. / Sq.m.) 📌 Panel dimensions (L x W x T) 📌 Gross & Net Weight 📌 Handling Symbols (Fragile / Keep Dry / This Side Up)
Delivery Time2-3 WEEKS
