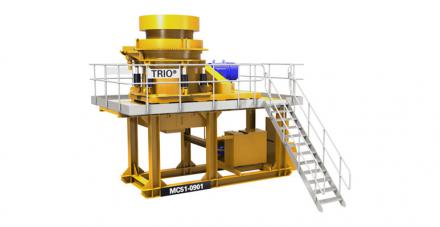

Modular Cone Crushers

Trio® MC Series Modular Cone Crushers can be used as standalone secondary and tertiary comminution stations equipped with motors, drives and guards. All Trio® cone crushers incorporate reliable user friendly features including a threaded bowl with hydraulic gear drive allowing precision adjustment. A fully integrated hydraulic console provides push button control for clamping, adjustment and tramp relief. Trio® self-contained lubrication skid utilizes climate controlled oil and an integrated PLC with automatic shutdown sensors for out of tolerance conditions. Precision machined bronze bushings with additional oil porting provide superior load carrying ability in harsh environments. Our spiral cut bevel gear set uses induction hardened gears and carburized pinions to ensure smooth, efficient horsepower transmission. The cast high strength alloy & fabricated mainframes are heat treated and stress relieved.
Key featuresbenefits
All Trio® cone modules include vibration isolation, with a floating crusher sub-frame that supports the crusher, drive system and motor guard. Trio® depth of modular plant experience results in, fast tracked plant development time from conception through commissioning. Trio® cone crushers are equipped with a rotating bowl assembly; hydraulic setting adjustment; hydraulic tramp release; hydraulic clearing; hydraulic thread locking; low energy consumption; and low wear rates. Modular support structures represent the most economical way to build a stationary plant today or to add onto an existing facility.
